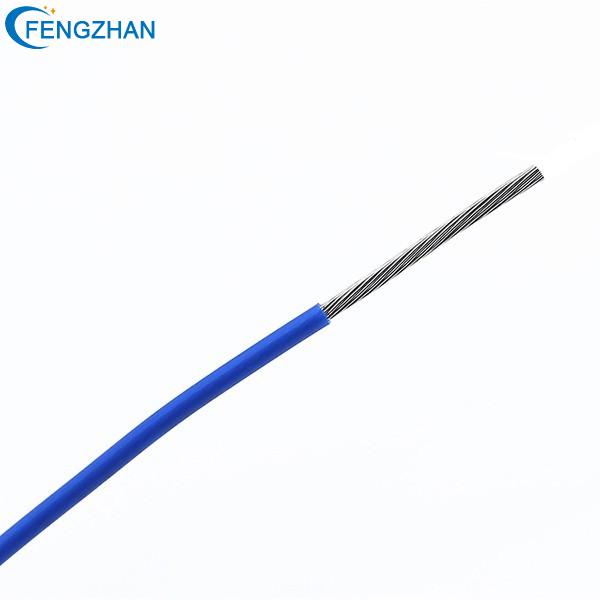

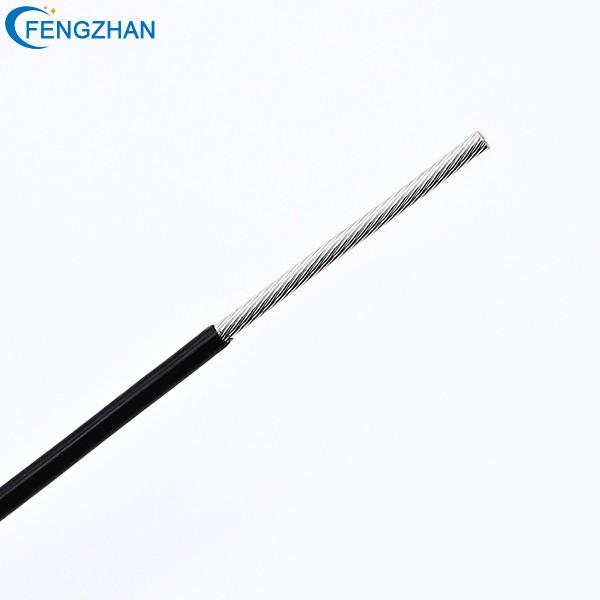

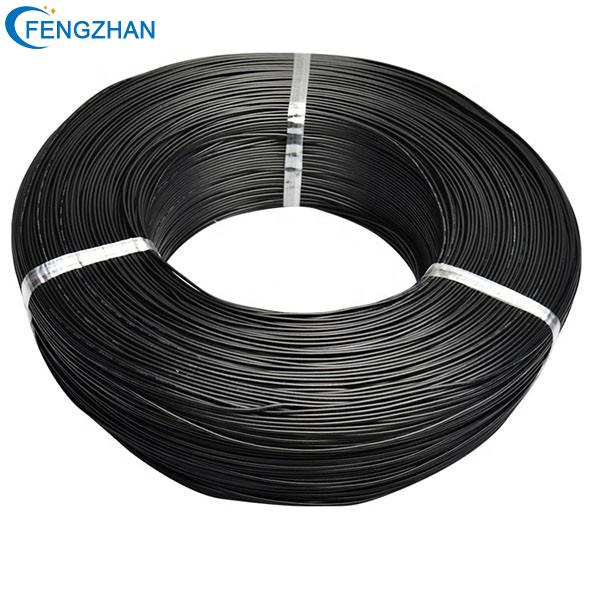

UL 1007 Hook Up Wire

Condutor Material: Pure Copper or Tinned Copper
Conductor Type: Stranded
Insulation Material: PVC
Color: Red, White, Black, Green, Yellow, etc

Dongguan Fengzhan Electronic Technology Co., Ltd is a leading supplier of custom and manufacture UL1007 wires.

EMAIL

Manufacturer Of UL1007 Wire

UL1007 is suitable for all kinds of household appliances, lighting fixtures, electric heating equipment, electrical electronics, circuit boards and other general electronic and electrical equipment internal connecting wires. It has a certain heat resistance, and can work at a temperature of 80°C in an environment exposed to oil and other solvents, with a peak voltage of 2500V.


Details

*Condutor Material: Pure Copper or Tinned Copper

*Conductor Type: Stranded

*Insulation Material: PVC

*Color: Red, White, Black, Green, Yellow, etc

*Rated Voltage: 300 V

*Temperature Range: 80 degree

*Application: Electrial Application

*Certification: UL,ROSH, SGS

*HS Code: 8544492900

*UL Certification No: E503941


Conductor

Insulation

Thickness

Overall

Diameter

Stand

Put-up

Conductor

Resistance at 20℃


AWG

Construction



No/mm

mm

mm

 Ft/coil

 M/Coil

Ω/KM

UL1007 30AWG

7/0.10

0.38

1.1

2000

610

381

UL1007 28AWG

7/0.127

0.38

1.2

2000

610

239

UL1007 26AWG

7/0.16

0.38

1.3

2000

610

150

UL1007 24AWG

11/0.16

0.38

1.46

2000

610

94.2

UL1007 22AWG

17/0.16

0.38

1.6

2000

610

59.4

UL1007 20AWG

26/0.16

0.38

1.8

2000

610

36.7

UL1007 18AWG

41/0.16

0.38

2.1

2000

610

23.2

UL1007 16AWG

26/0.25

0.38

2.4

1000

305

14.6


Get A Quote


Feature

1. Conductor: use single or stranded 30-16AWG bare copper or tinned copper;

2, environmental protection requirements: in line with ROHS standards;

3. It can pass UL, CSA, vertical flame resistance test;

4. Use standard thickness, easy to peel, easy to cut, with acid and alkali resistance, oil resistance, moisture resistance, mildew resistance and other characteristics;

5. UL1007 used in the internal connection of electrical appliances, automobiles, lighting, toys, and electronic equipment.


FENGZHAN Electronics is mainly engaged in the production and sales of UL1007 wires. MOQ is 3050 meters. We have many years of production experience, large quantity and excellent price, contact customer service: lynn@fzwires.com
