  • UL 1007 30AWG Hook Up Wire
  • UL 1007 30AWG Hook Up Wire
  • UL 1007 30AWG Hook Up Wire
UL 1007 30AWG Hook Up WireUL 1007 30AWG Hook Up WireUL 1007 30AWG Hook Up Wire

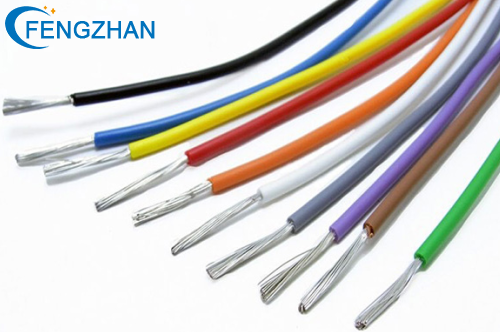

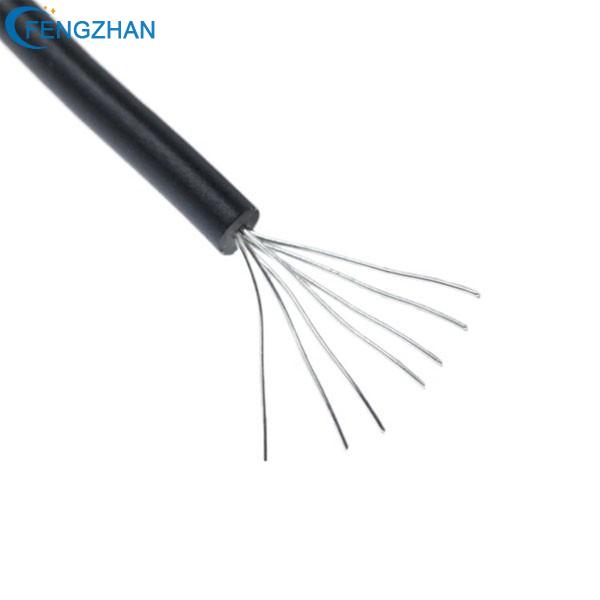

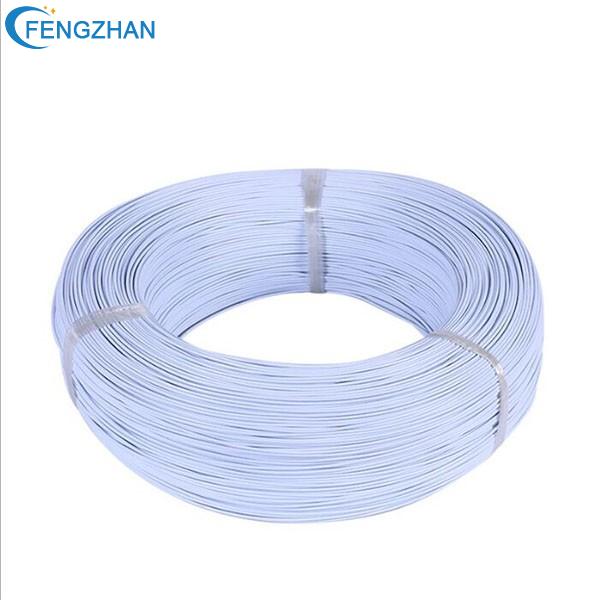

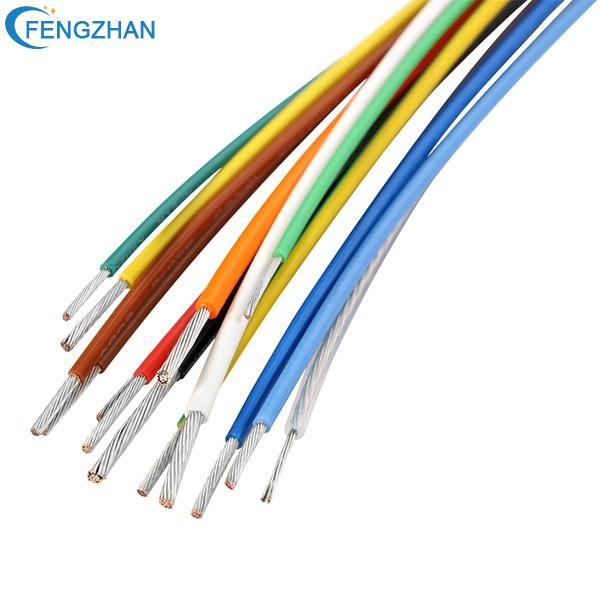

UL 1007 30AWG Hook Up Wire

Model Number: 1007 30AWG
Application: automobiles, power generation
Conductor Material: Tinned copper
Insulation Material: PVC
Length: 610Mter

Dongguan Fengzhan Electronic Technology Co., Ltd. is a manufacturer specializing in UL 1007 Electrical Wires production, with UL and Rosh certification.

EMAIL


wire product details.jpg

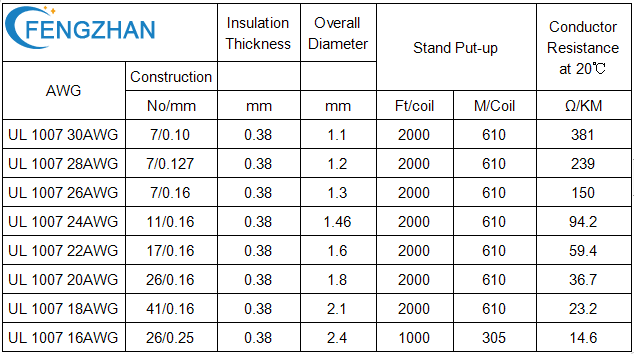

UL 1007 30AWG Wire Details

Model Number: 1007 30AWG

Application: automobiles, power generation

Conductor Material: Tinned copper

Insulation Material: PVC

Length: 610Mter

Feature: Conduction, insulation

Electric Conduction: Tinned copper

Pressure proof: 3kv

Temperature resistance: 80℃

1007 PVC Electrical Wire Factory

UL 1007 30AWG Wire Feature

1. Use single stranded or stranded bare copper or tinned copper for the conductor

2. PVC insulation

3. Rated temperature: 80℃, rated voltage: 300Volts

4. Use standard thickness, easy to peel and cut off.

5. Pass UL VW-1 and CSA FT1, vertical burning test

6. Twisted before plating (TC) can be used as conductor

7. Applications: For general purpose internal wiring of electronic and electrical equipment.

UL 1007 30AWG Wire

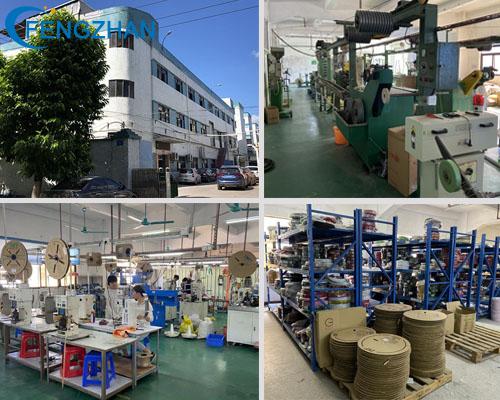

factory display1.jpg
