UL1007 20AWG 80℃Hook Up Wire

Place of Origin: Guangdong, China
Model Number: UL1007 20AWG
Application: Low temperature, wiring
Conductor Material: Tinned Copper
Insulation Material: PVC
Standard: UL758
Color: White, black, red, etc
Oil resistance: Excellent

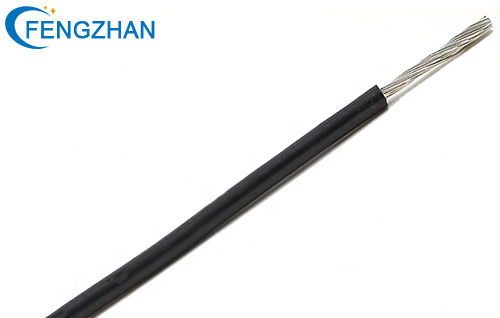

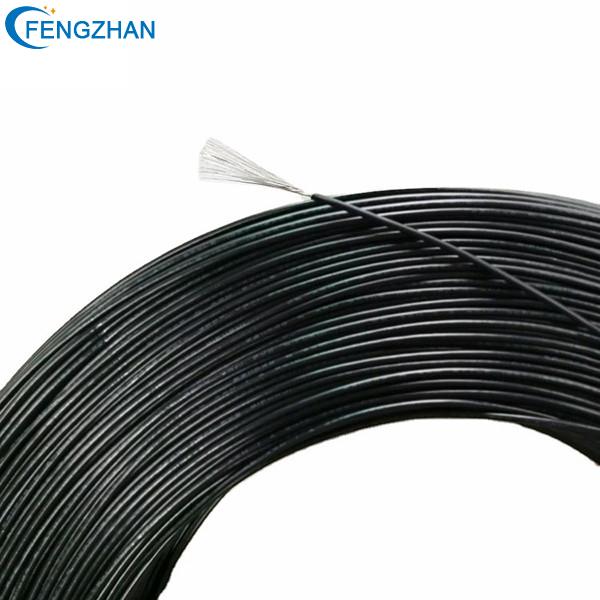

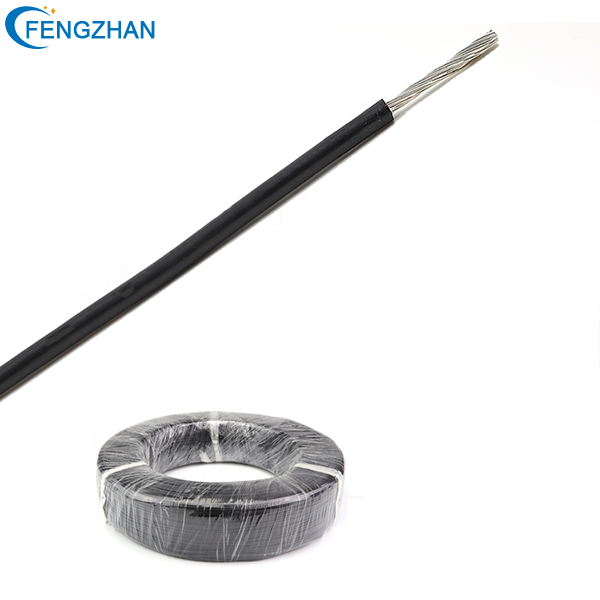

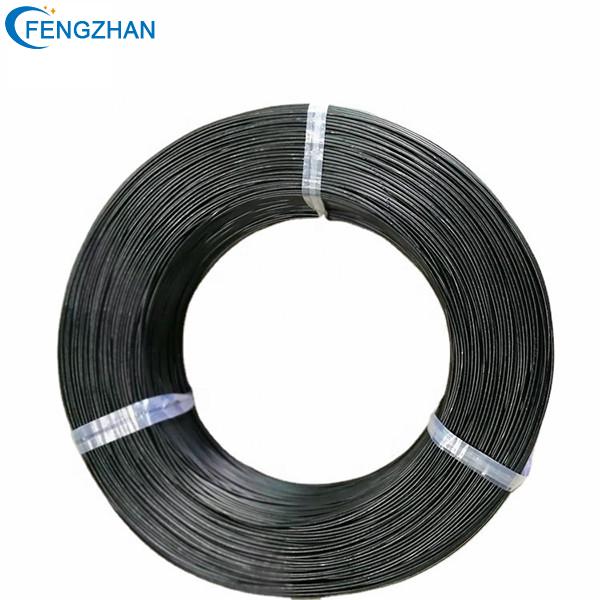

UL1007 Hook-up wire Details

Conductor: Stranded Tinned Copper

Insulation: Lead free PVC

Temperature range: -20℃~ +80℃

Rated Voltage: 300V

Reference Standard: UL Subject 758, UL 1581 & CSA C22.2 No.210

Color: blue, grey, yellow, red or as your requirements

Stripping: Uniform insulation thickness to ensure easy stripping and cutting

Test: Passes UL VW-1 & CAS FTI Vertical Flame Test

Application: For Internal Wiring of Electoronic and Electrical Equipment.

UL1007 Hook-up wire.png

UL 1007 WIRE DETAILS		Insulation Thickness	Overall Diameter	Stand Put-up		Conductor Resistance at 20℃
AWG	Construction
	No/mm	mm	mm	Ft/coil	M/Coil	Ω/KM
UL 1007 30AWG	7/0.10	0.38	1.1	2000	610	381
UL 1007 28AWG	7/0.127	0.38	1.2	2000	610	239
UL 1007 26AWG	7/0.16	0.38	1.3	2000	610	150
UL 1007 24AWG	11/0.16	0.38	1.46	2000	610	94.2
UL 1007 22AWG	17/0.16	0.38	1.6	2000	610	59.4
UL 1007 20AWG	26/0.16	0.38	1.8	2000	610	36.7
UL 1007 18AWG	41/0.16	0.38	2.1	2000	610	23.2
UL 1007 16AWG	26/0.25	0.38	2.4	1000	305	14.6
