UL1007 22AWG Wire 300V

Place of Origin: Guangdong, China
Model Number: UL1007 22AWG
Application: Internal Wiring
Conductor Material: Tinned Copper
Insulation Material: PVC
Conductor Type: Stranded
Color: White, Blue, Red, Black, Brown, Yellow, Green, Yellow/Green

EMAIL

UL1007 22AWG Wire Details

Nominal Voltage:300V

Temperance Range:-20℃~80℃

Conductor Construction: 17/0.16 mm

Wire Over Diameter: 1.6 mm

Specification: Single core

Colour:Black, Red, Yellow, etc

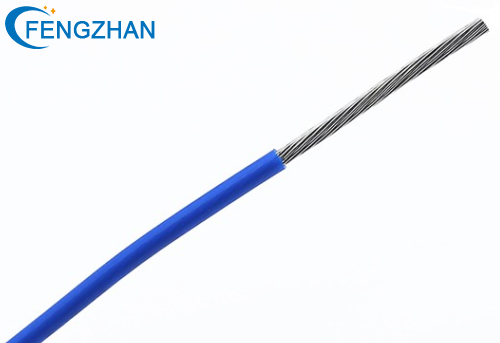

UL1007 22AWG Wire.png

1007 Wire Details

Insulation
Thickness

Overall
Diameter

Stand Put-up

Conductor
Resistance
at 20℃

AWG

Construction



No/mm

mm

mm

Ft/coil

M/Coil

Ω/KM

UL 1007 30AWG

7/0.10

0.38

1.1

2000

610

381

UL 1007 28AWG

7/0.127

0.38

1.2

2000

610

239

UL 1007 26AWG

7/0.16

0.38

1.3

2000

610

150

UL 1007 24AWG

11/0.16

0.38

1.46

2000

610

94.2

UL 1007 22AWG

17/0.16

0.38

1.6

2000

610

59.4

UL 1007 20AWG

26/0.16

0.38

1.8

2000

610

36.7

UL 1007 18AWG

41/0.16

0.38

2.1

2000

610

23.2

UL 1007 16AWG

26/0.25

0.38

2.4

1000

305

14.6


UL1007 22AWG Wire Application

Machine tool manufacturing, complete equipment installation engineering, power station, heating and air conditioning systems, refrigeration equipment, office automation equipment, household appliances, lighting, electronic equipment, temperature sensing, etc., connecting cables, internal wiring of computers, electronic and electrical equipment

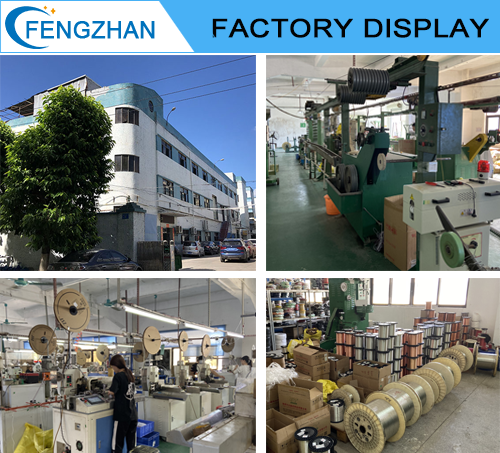

wire factory display.png

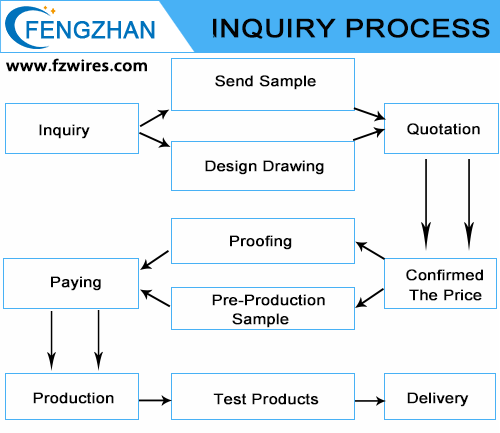

inquiry process.png
