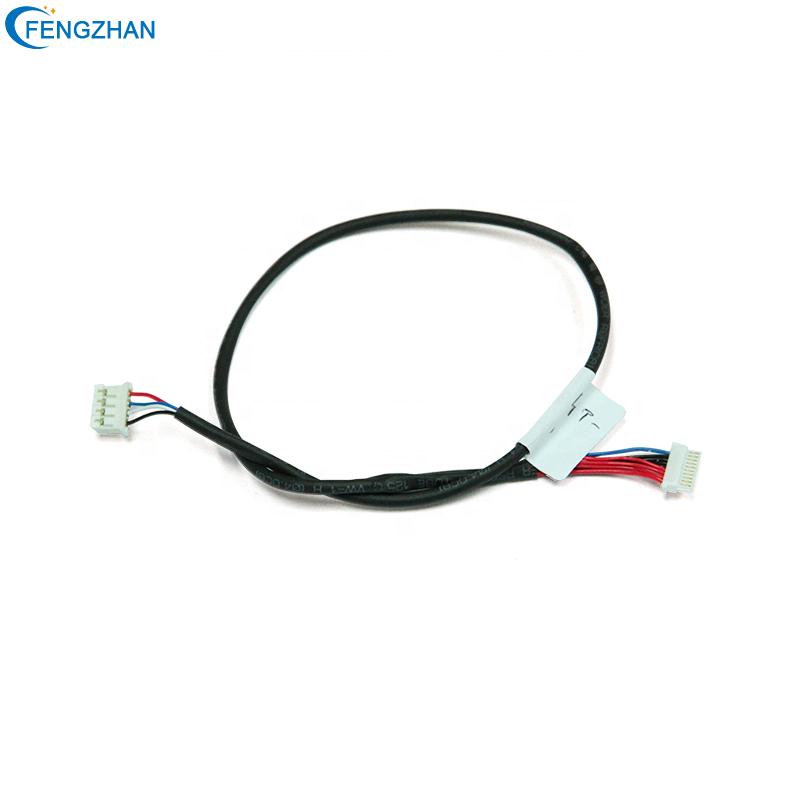

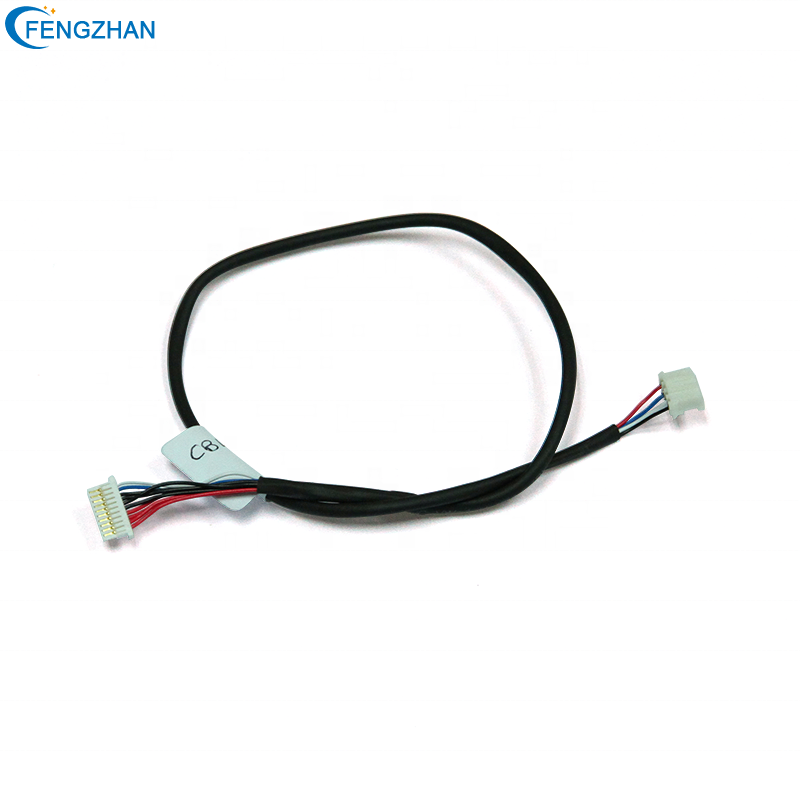

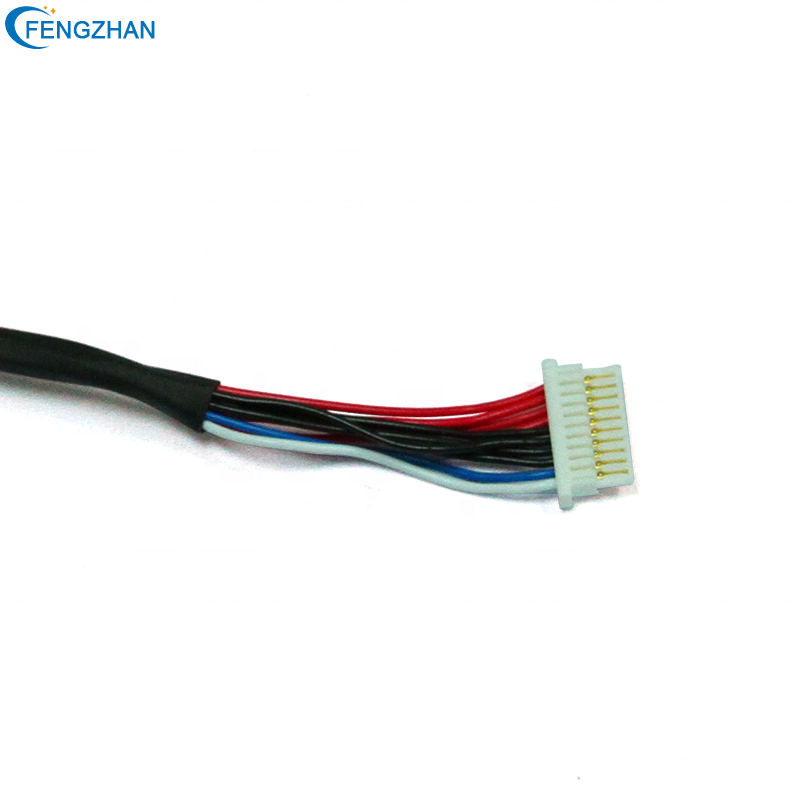

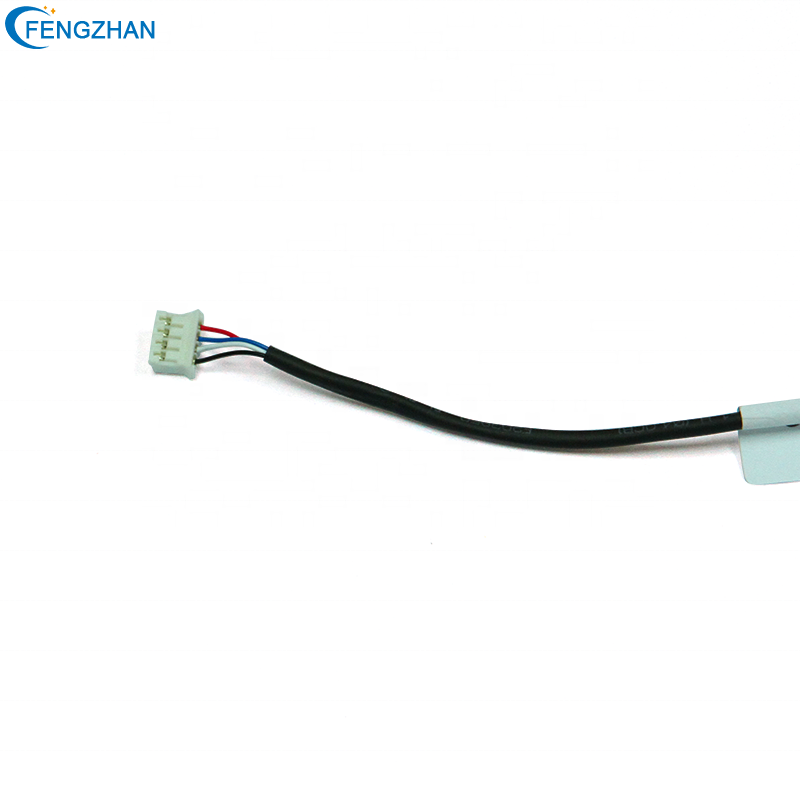

Washing Machine Wiring Harness

Washing Machine Wiring Harness Details

Environment: All Materials are RoHS Compliant

Wire Standard: use UL standard or Customize

Connector: With Molex, JST, Hirose, AMP… Can be Original or Equivalent

Quality: 100% Electrical Tests Before Shipping

Service: OEM and ODM products are acceptable

Sample: Provide Free Samples in 1-2 days

Freight Cost: Very Low Freight Cost for Express, Sea and Air Freight

Washing Machine Wiring Harness Wiring Method

1. There are certain skills in the wiring of the washing machine motor. If it is the common line of the main and auxiliary windings, it can be directly connected to the power line. The other two are the main winding and the auxiliary winding, which are used to connect the two capacitors. end. Connect the two wires of the capacitor to the two changeover contacts of the timer and the job is done.

2. The washing machine washing motor is measured with three wires of the motor with a multimeter. When two wires have the highest resistance value, the wire that is not tested is the common terminal. The washing motor runs in the reverse direction. Its starting and running windings are the same. With the help of the switch, it can work in both forward and reverse directions, that is to say, there is no distinction between the main winding and the auxiliary winding.

3. The forward and reverse rotation of the motor is realized by the regular conversion of the internal contacts of the washing machine timer. The actual motor wiring is very simple. Use a multimeter to measure the two wires that prevent the two largest wires from connecting to the capacitor. . The running line and the center line are connected to the power supply, and the start line is not connected.
