  • Flat Ribbon Cable Harness Molex Harness
  • Flat Ribbon Cable Harness Molex Harness
  • Flat Ribbon Cable Harness Molex Harness
  • Flat Ribbon Cable Harness Molex Harness
Flat Ribbon Cable Harness Molex HarnessFlat Ribbon Cable Harness Molex HarnessFlat Ribbon Cable Harness Molex HarnessFlat Ribbon Cable Harness Molex Harness

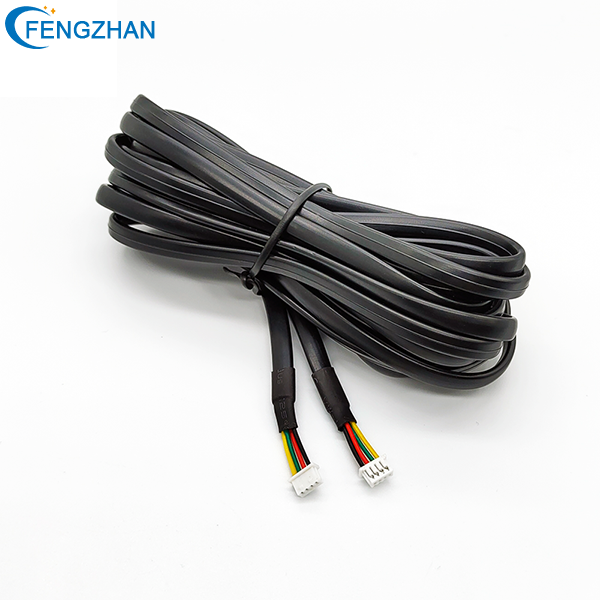

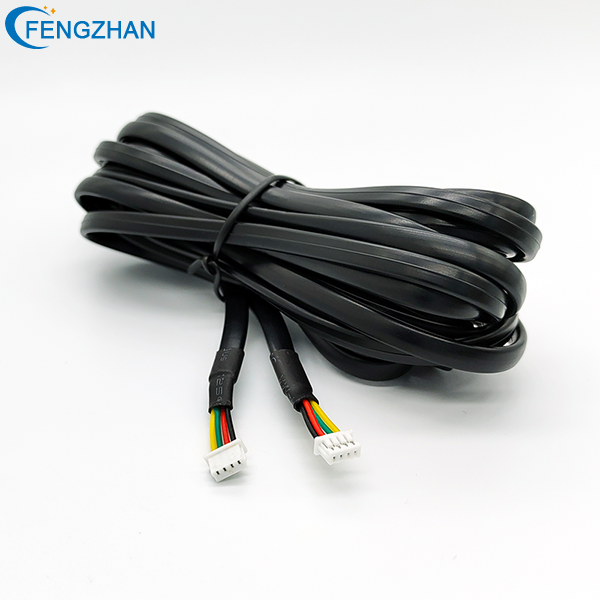

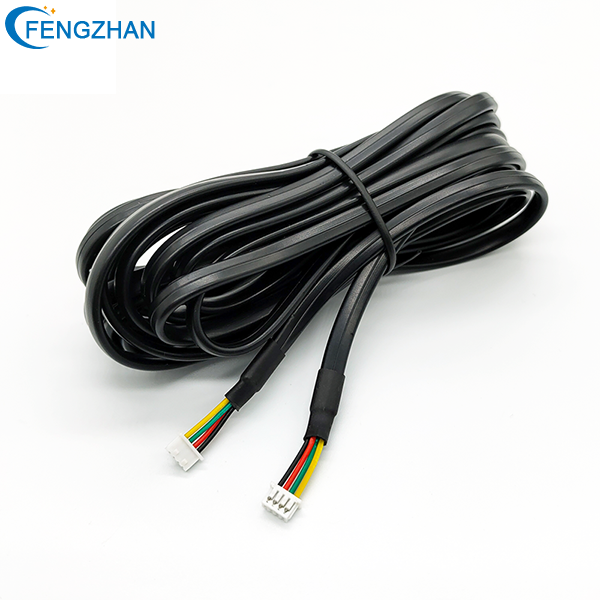

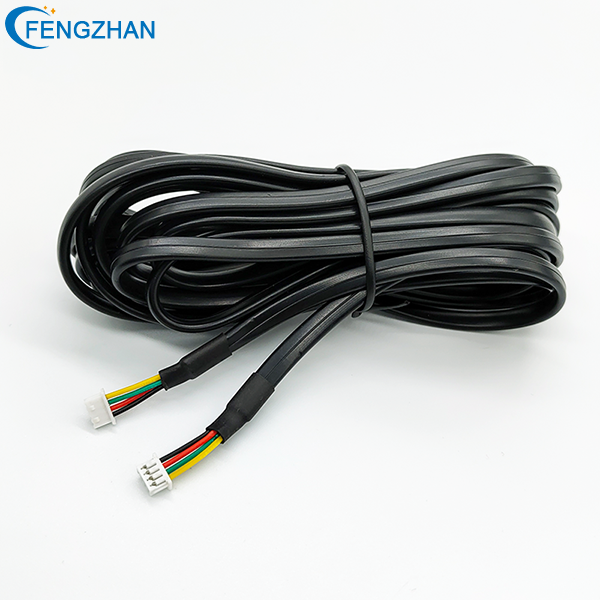

Flat Ribbon Cable Harness Molex Harness

Application: PCB
Color: Black/Nature
Pitch: 2.0mm
MOQ: 500PCS
Wire Type: Flat Cable
Insulation Material: PVC Insulation

EMAIL

product details.png

The common types of Flat Ribbon Cable Harness are as follows:
Type A: Both ends are connected and the reinforcing plate is pasted on the insulating tape;
Type B: The reinforcing plate is directly pasted on the insulating tape;
Type C: The reinforcing plates at both ends are directly pasted on the conductor;
D type: the reinforcing plates at both ends are directly pasted on the conductor; E type: one end of the reinforcing plate is pasted on the insulating tape, and the other end is directly soldered;
Type F: The reinforcing plates at both ends are directly attached to the insulating tape, and the inner half is peeled off;
Type G: Direct soldering on both ends.

Flat Ribbon Cable Molex <a href=https://www.fzwires.com/wire-harness.html target='_blank'>Wire Harness</a>3.png
Flat Ribbon Cable Harness Feature
The flat cable is produced by a standard organization and is suitable for mobile electrical equipment with an AC rated voltage of 450V/70V and below. The flat structure is especially suitable for occasions that are frequently bent, not kinked, and folded neatly, such as driving. YB, YBF, YBZ three categories of products can meet the needs of various occasions. It is suitable for electrical connection between mobile electrical equipment in harsh environments such as power generation, metallurgy, chemical industry, and ports.


wire hanress application.png


Wire application installation range in Flat Ribbon Cable Harness:
Flat cables are suitable for lifting equipment, cable tracks, trolleys, transmission machinery, elevators, cranes, tower cranes, telescopic machinery and other mobile electrical power transmission lines and control, lighting, communication channels in special places, and can also be used in closed indoor environments. Connection installation of moving mechanical parts, etc. Compared with round cables, flat cables have the advantages of saving installation space and cost, and with the same number of core wires, their bending radius is smaller than that of round cables.

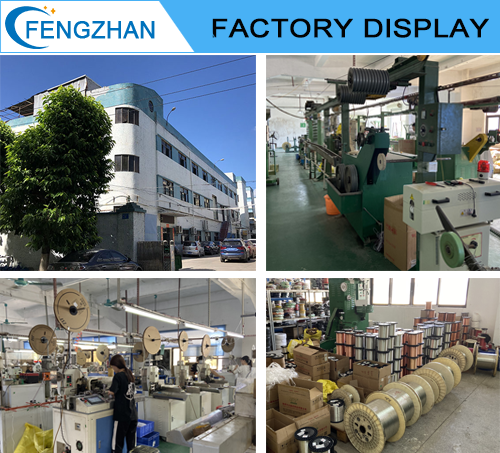

wire factory display.png
