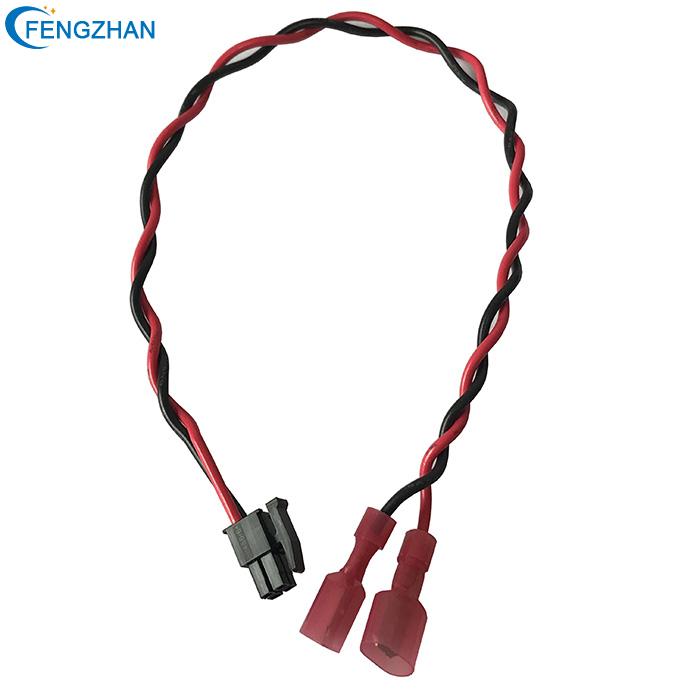

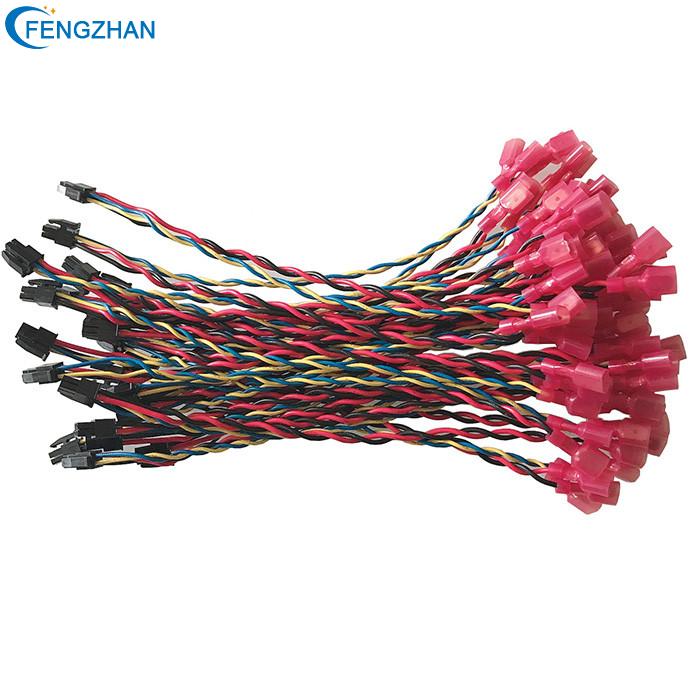

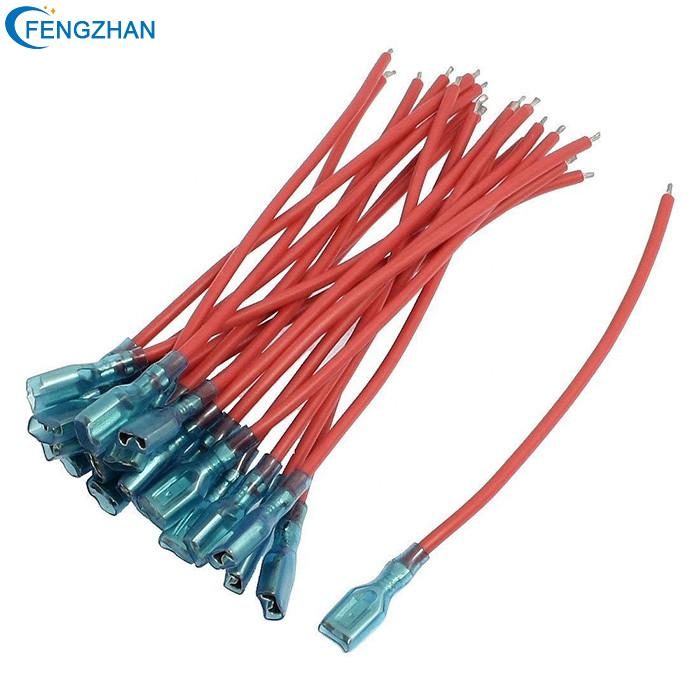

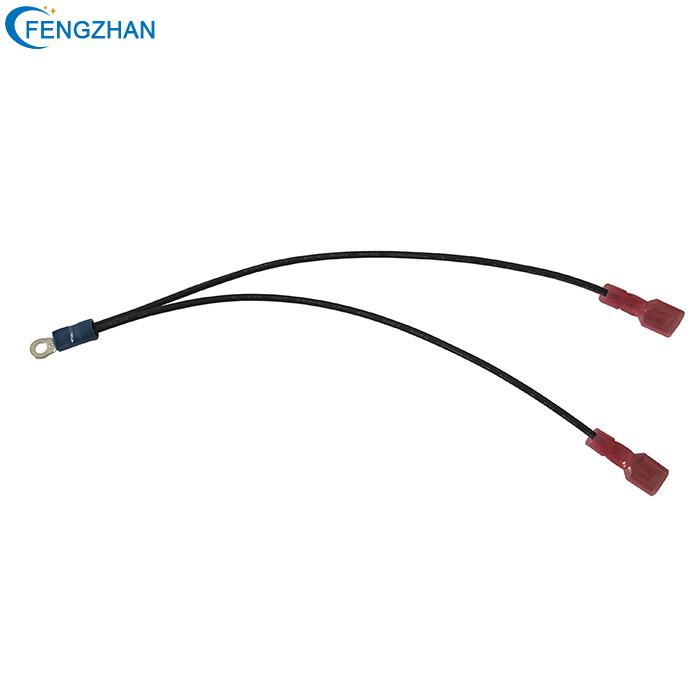

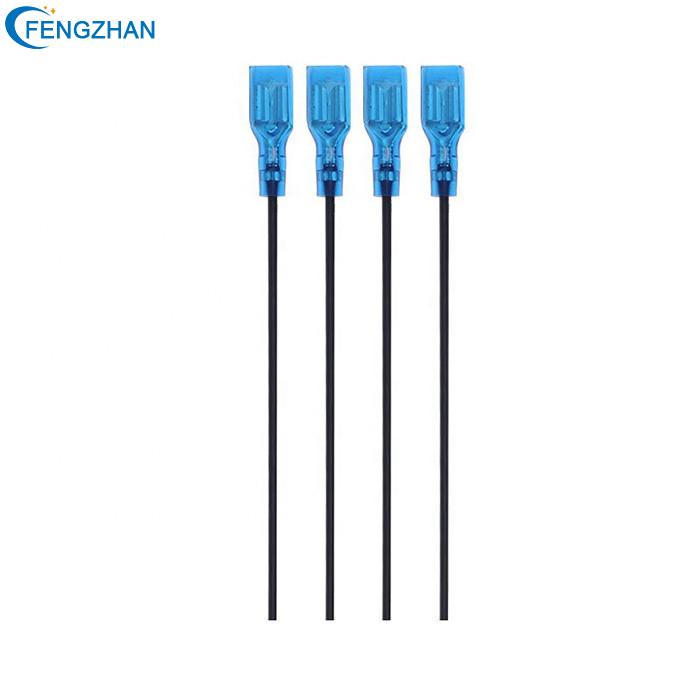

Water Heater Cable Harness Custom HarnessWater Heater Cable Harness Custom HarnessWater Heater Cable Harness Custom HarnessWater Heater Cable Harness Custom HarnessWater Heater Cable Harness Custom Harness

Water Heater Cable Harness Custom Harness

Application: Water Heater, Electronic
Wire Gauge: 24AWG or customized
Connector: Plug Spring Terminal
Wire material: PVC/Silicone Wire
Length: 150mm or customized
Cable preparation: Trimmings, Stripping, Tin coating, Shielding, Twisting

EMAIL

product details.jpg

How many square wires are required for a dual-mode water heater wiring harness
Let me tell you a method for selecting the wire diameter of all electrical appliances: divide the maximum power on your water heater nameplate by 220 to get the maximum current of your water heater when it is working normally, and multiply it by 1.5 or 2 times to give enough safety margin. After calculating this current, select the appropriate power line according to the current and wire diameter comparison table. The maximum current allowed for 1.5 square wire is about 7A, 2.5 square wire is about 11A, 4 square wire is about 18A, 5 square wire is about 23A, 8 square wire is about 35A, and 10 square wire is about 44A.

Water Heater Cable Harness.jpg


The water heater wiring harness plays an indispensable role in the water heaters used in daily life. It is an important part of the water heater. It is basically composed of wires, connectors, and terminals. It plays a fundamental role in controlling the ignition of the gas water heater. Whether the water heater can be used normally It is an important guarantee and has the function of security protection.

If there is electric heating, the wiring needs to be routed in the outer insulation layer of the water tank, and the sensor and the temperature controller also need to be connected by a wiring harness.
