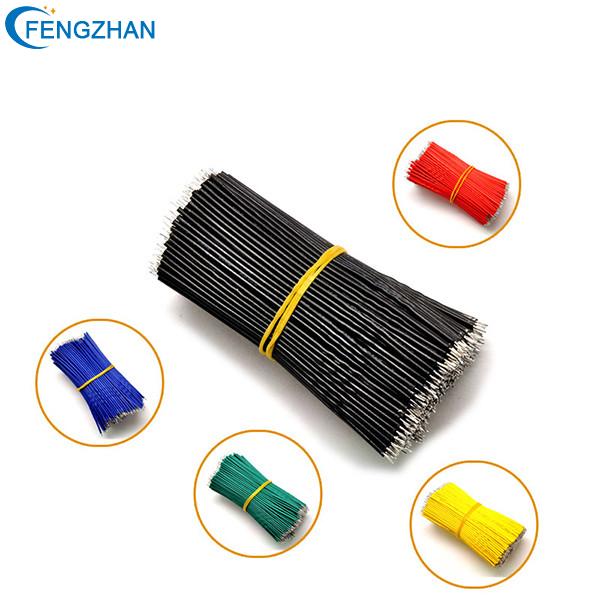

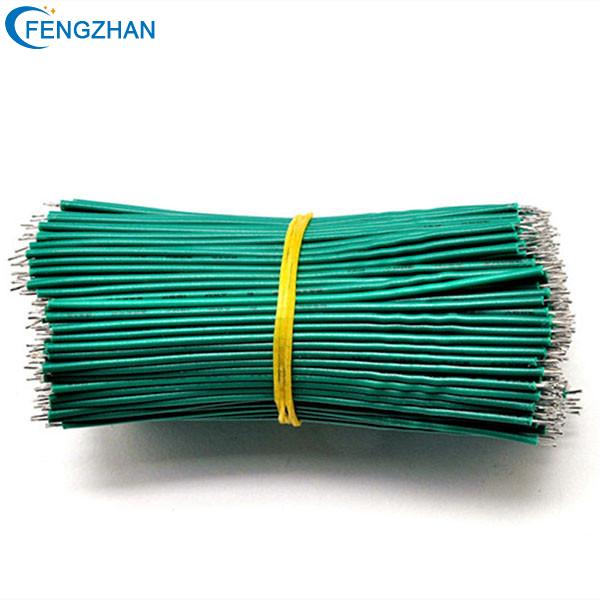

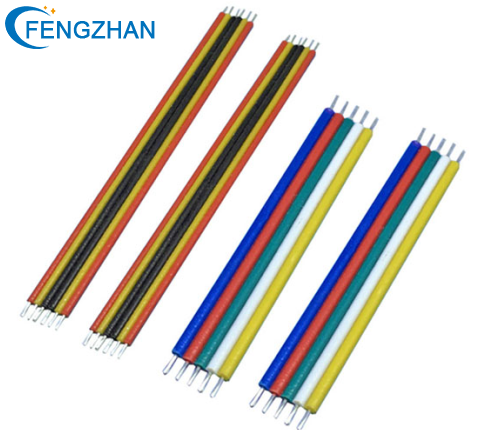

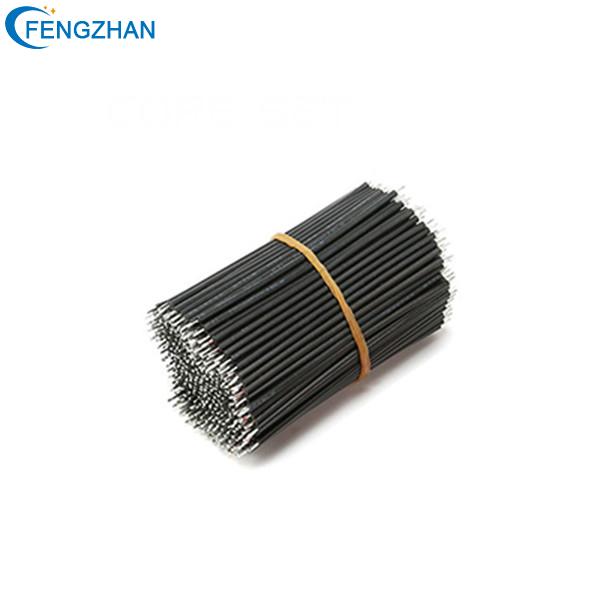

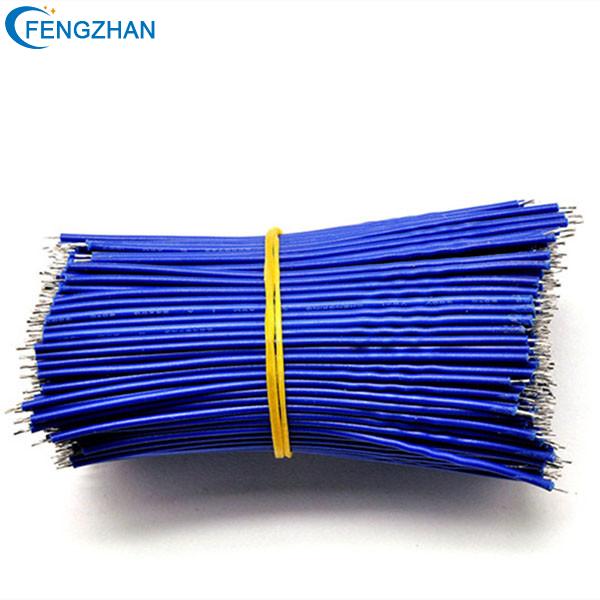

PCB Jumper Cable Breadboard Wires

Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: PVC
Color: Red, Black, Yellow, Blue, etc
Feature: High Resistance
Application: PCB, Breadboard

EMAIL


Dongguan Fengzhan Electronic Technology Co., Ltd

Jumper Cable Details
Specification: 100% Brand New
Color: Black ,Blue,Red,White,Yellow,Green
Length: 8cm or custom
Two ends with tin-plated
Note:Please allow 1-2mm error
Package including: According to your Choose
Cable Type: UL 1007, UL1015, UL1430, UL3239, UL2468

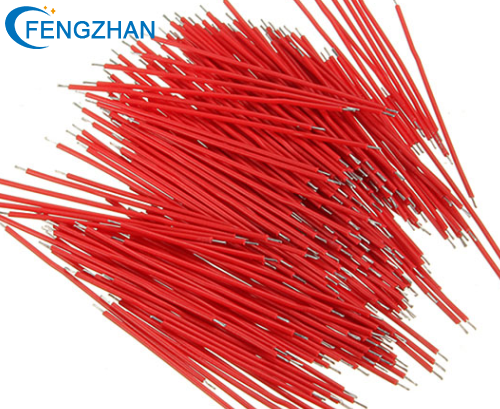

jumper cable

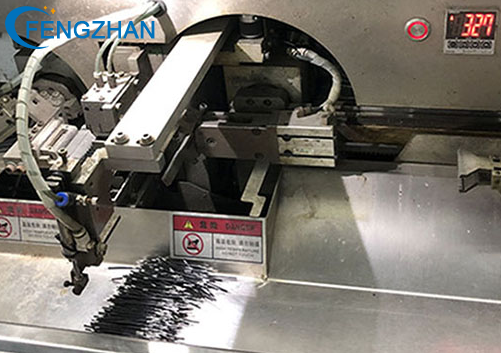

Product features of automatic wire cutting and soldering machine: The automatic double-head tinning machine can realize the functions of automatic wire-on, wire cutting, single-ended stripping, double-ended stripping, double-ended half-stripping, double-ended twisting, single-ended tinning, double-ended tinting, wire detection, etc.

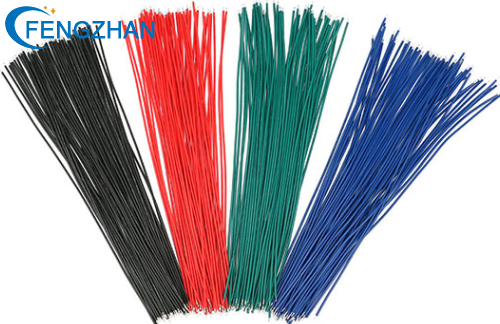

jumper cable

Product features of automatic wire cutting and soldering machine:
1. Wide range of production wires: from AWG10---AWG32, 8 wires can be processed at the same time, with high production capacity and wide application range;

2. Full Chinese touch operation: simple and easy to learn, full CNC tool adjustment, CNC adjustment of length, depth and other parameters.

3. Full servo drive, high precision and fast speed.

4. The tin furnace is designed with automatic tin scraping, smoke exhaust, and wire feeding devices, so that there is no tin oxide slag and smoke in the tin area, while ensuring the cleanliness of the table and reducing the harm to the human body by the smoke;

5. With a waste recycling device, the stripped rubber can be automatically recycled to the storage bag.

Jumper Cables

Dongguan Fengzhan Electronic Technology Co., Ltd adopts automatic wire cutting and soldering machine, which can quickly produce high-quality jumper cables and save costs.
First,  compared with semi-automatic and traditional manual tinning, it can save 2-3 workers and save human resources.

Second,  it is very stable. It only needs more maintenance after the initial commissioning is completed, and it can be used for a long time. Compared with the unstable factors of the workers, the gap between the two is very large.

Third,  the automatic soldering machine is equipped with protective devices, which reduces the incidence of work-related injuries.

Fourth,  the output is high. The output of a fully automatic tinning machine is more than 3 times that of human hands.

jumper cable production
