Fly Jumper Wire

Fly jumper wire is actually a connecting wire that connects two demand points on a circuit board (PCB). Due to different product designs, the jumper wires use different materials and thicknesses. Most jumpers are used for equal potential voltage transmission, and are also used for reference voltage protection circuits.

Product Describle

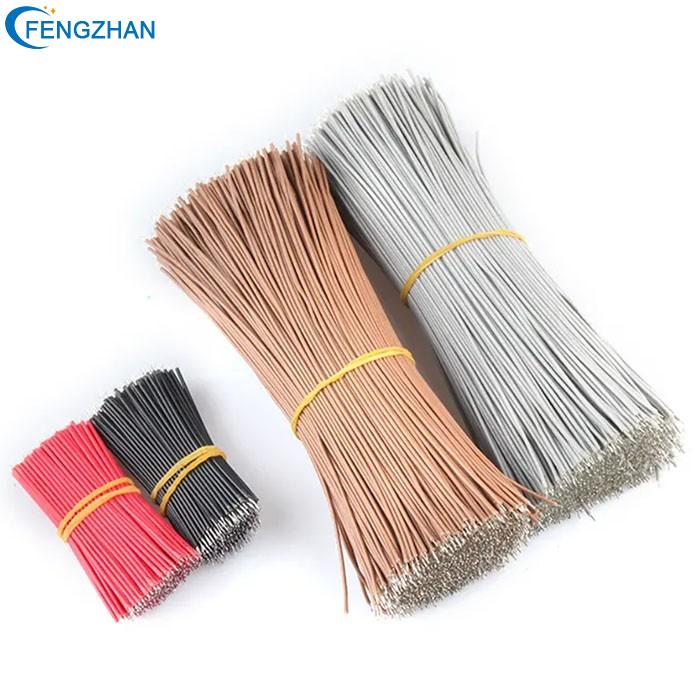

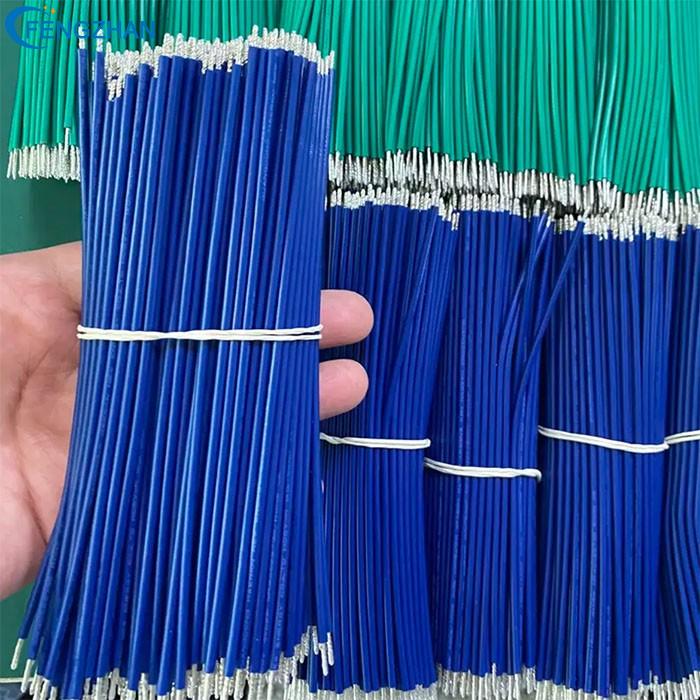

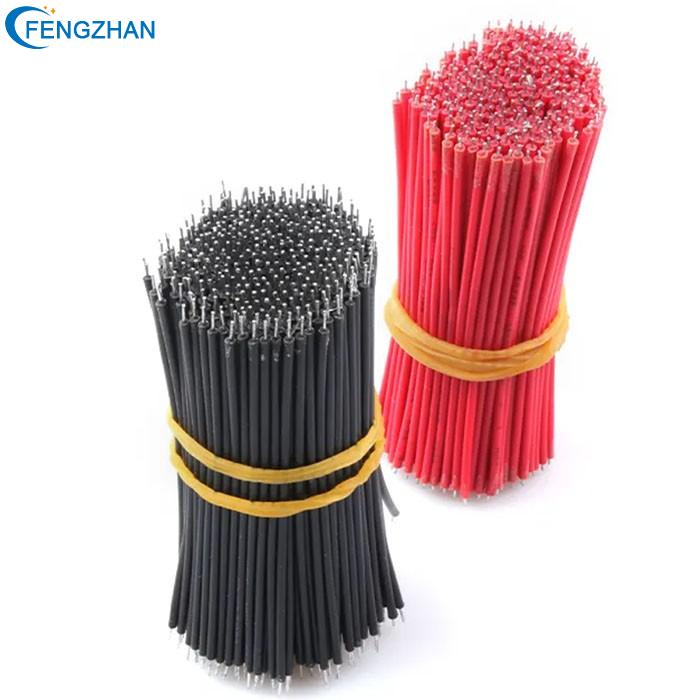

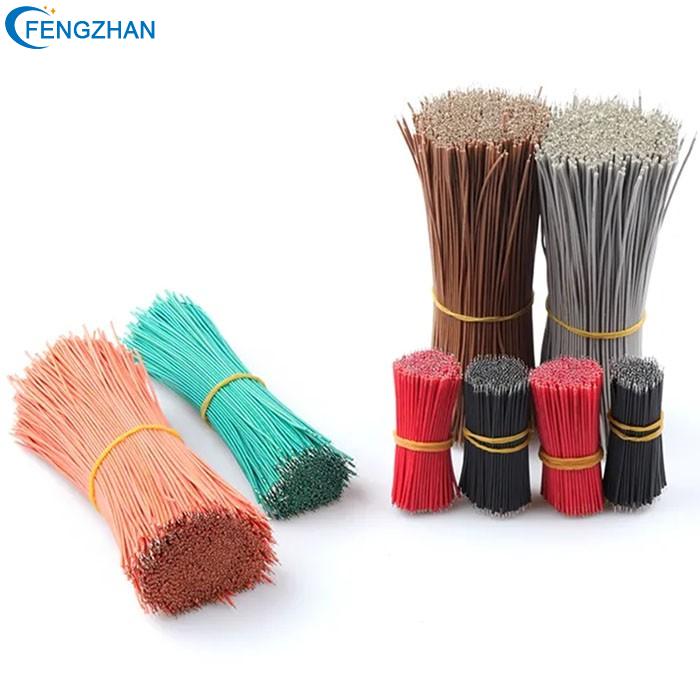

Item Name: 20-28AWG Breadboard Jumper Cable Wire

Color: Blue, Green, Yellow, Black, Red, White.

Cable: UL1007 UL1015

Material: Tinned copper wire

Tail tinning: 3mm

Wire thickness: 1.6mm

Length: 5cm, 10cm, 15cm, 20cm.

pcb jumper wire 2.jpg

Effect

The role of fly jumper wire in PCB design and circuit layout is very important. Specifically, the functions of jumpers mainly include the following aspects:

1. Connect circuits: Jumpers can connect various complex circuits, including chips, resistors, capacitors and inductors, etc.

2. Play a separation role: In high-power circuits, jumpers can play a separation role to avoid signal interference with each other and improve the stability and performance of the circuit.

3. Solve circuit layout problems: In circuit layout, jumpers can solve problems such as failure to connect circuits between components, too far distance between components, and incorrect component pin labeling.

4. Improve reliability: The use of jumpers can improve reliability and stability in circuit design and reduce the failure rate.

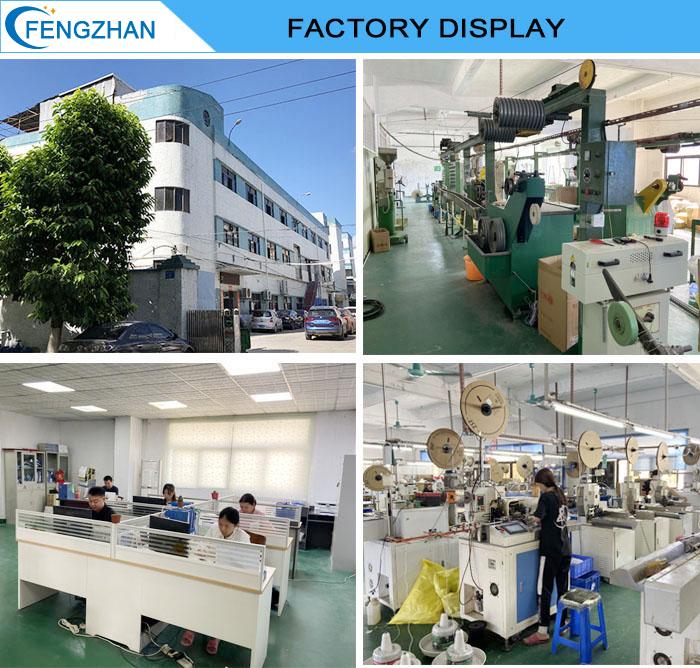

factory display-fengzhan.jpg
