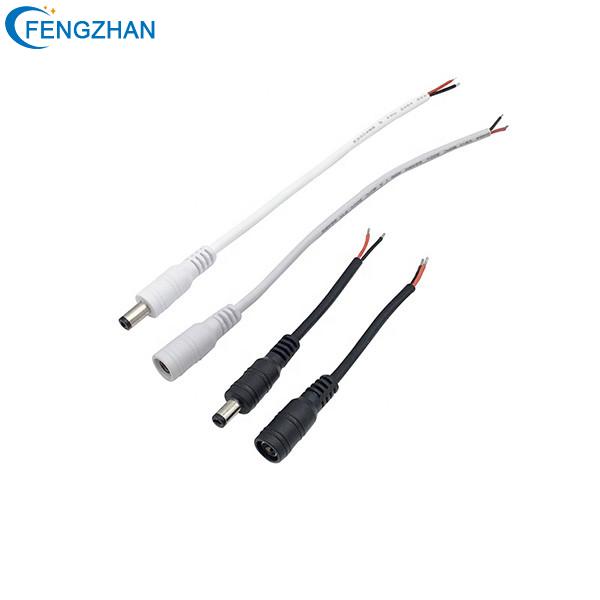

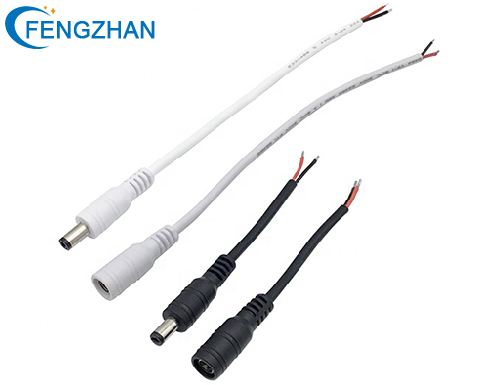

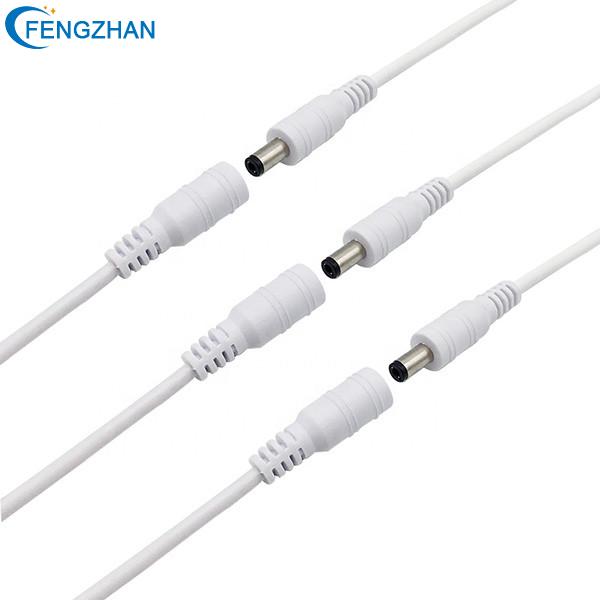

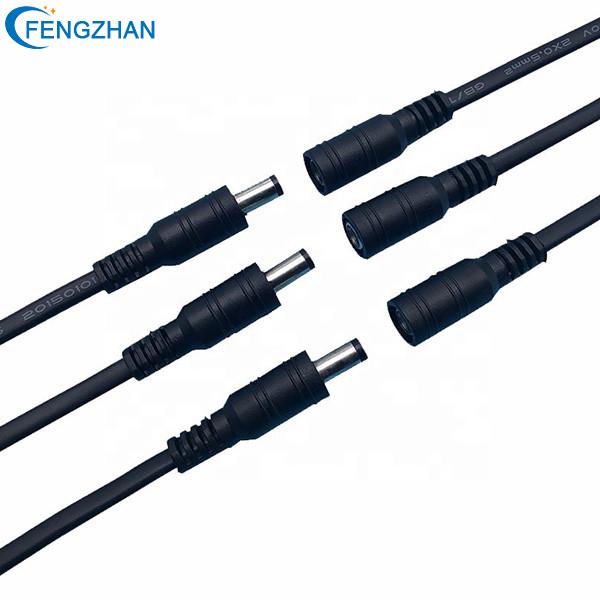

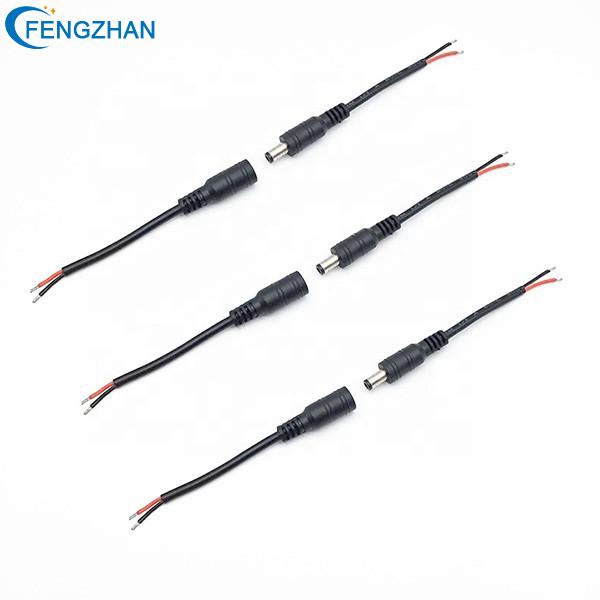

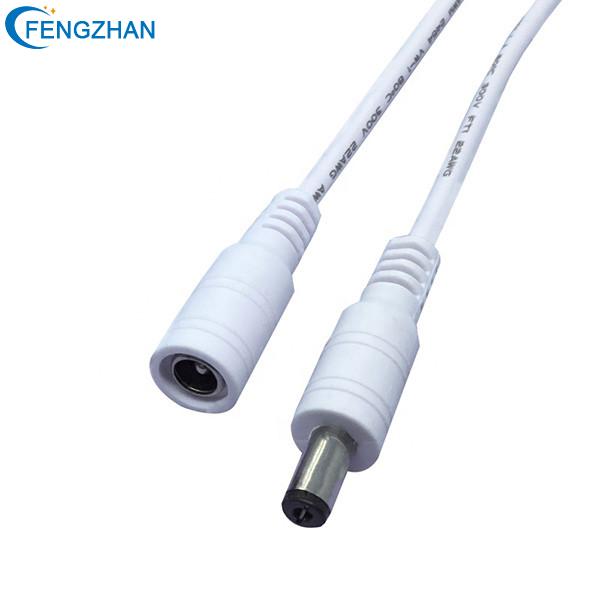

DC Power Cable 5.5X2.1 Male to Female DC Cables

Place of Origin: Guangdong, China
Application: COMPUTER
Male End Type: DC Plug
Female End Type: Stripped
Jacket material: PVC
Connector type: Adaptor
Line length: Customized
Temperature: -50℃~65℃

EMAIL

wire product details.jpg

The DC plug is composed of plastic, brass, tuning fork, bell mouth, and copper tube.
1. Rated load: DC500V 0.5A
2. Contact resistance: 50mΩ
3. Electrical performance: DC500V 100MΩ without interruption, short circuit and insulation, etc.
4. Insulation resistance: 100MΩ, no breakdown or short circuit within 1 second
5. High voltage resistance:AC 500V (50-60HZ) 1min
6. Soldering temperature: (the temperature of the soldering iron tip during soldering) 320-350°1-3s, good diffusion, drawing by the soldering object will not cause the soldering surface to separate, easy to solder
7. Insertion and extraction force:3-30N is equivalent to 0.3-3Kgf
8. Insertion and extraction life:3000-5000 times of insertion and extraction without disconnection, short circuit and insulation, etc.
9. Application range: -20℃-----+80℃
DC Power Cable
1. The DC charging power cable is also the adapter charger we often say. It is a connector that connects the product and plays the role of connecting the power supply. Although the DC power cable is small, it links all aspects of our lives and its application range It is also extremely broad.

2. The DC headers of most router adapters are 5.5mm*2.5mm. The output voltage and current are mostly between 9V/0.6A~12V1A. The center pin of DC power socket has: 0.5mm/0.7mm/1.0mm/1.1mm/1.3mm/1.65mm/2.0mm/2.5mm DC power socket models from DC-001 to DC-096. The most commonly used DC power socket aperture specifications are 2.5mm and 3.5mm.

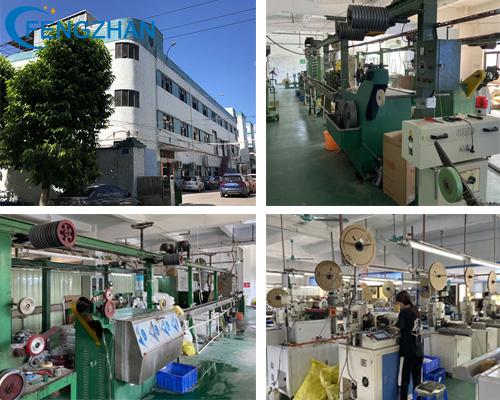

factory display1.jpg

factory display2.jpg

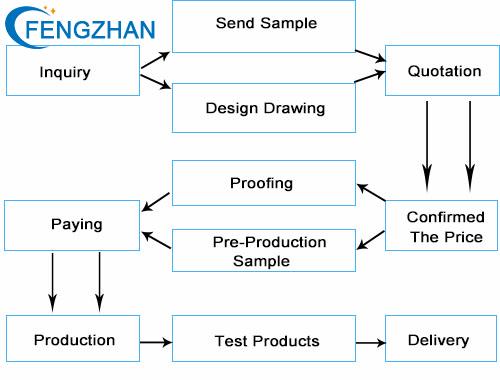

inquiry process.jpg
