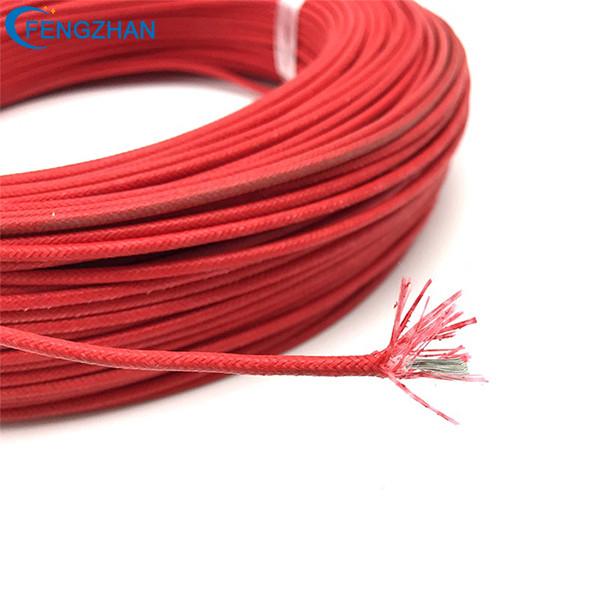

UL 3122 Silicone Braided Fiberglass Wire

Place of Origin: Guangdong, China
Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: Silicone Fiberglass
Model: 16awg/18awf/20awg/22awg/24awg
Temperature range: -60 to 200 Centigrade

EMAIL

UL 3122 Wire Use

Widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.

UL 3122 Wire Features
1. Superior dielectric properties;
2. Resistance to high temperatures, moisture, and oil;
3. Low eccentricity,prevent breakdown and safety protection;
4. The ability to match your flammability rating requirements, including flame retardancy, low smoke, and low toxicity;
5. The ability to meet international industry standards,with eco-friendly material.

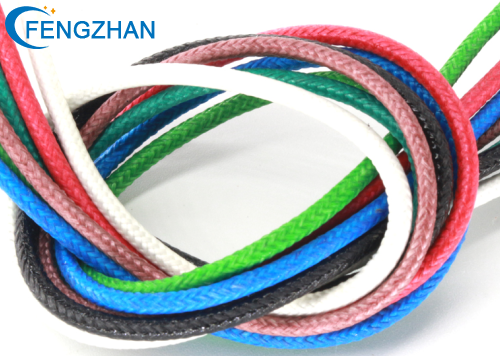

UL 3122 Wire


UL 3122 Wire Application
Braid wire applies to household appliance,the lighting ,the electronic equipment,the temperature sensor,the aircraft,the aviation,the war industry product,the metallurgy and chemical engineering,the automobile and ship,the electric instrumentation,the light industry machinery and the electrical power installation etc.

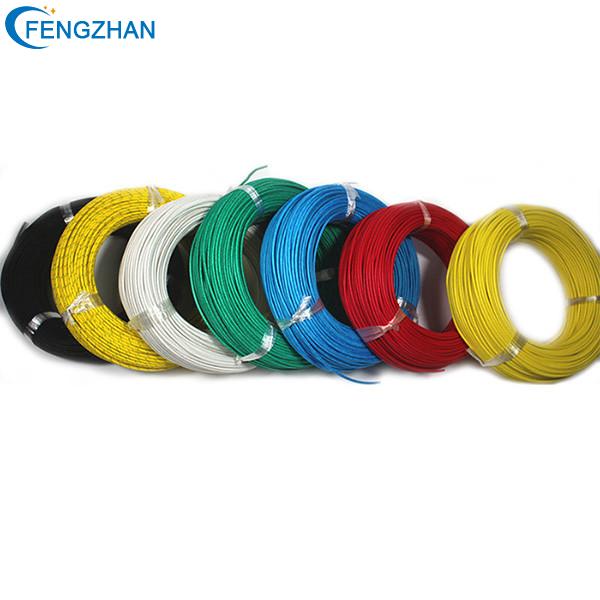

UL 3122 Wire

Wire TypeKVConductor Construction
(No/mm)
Outer Diameter
(mm)

Temp

(℃)

M/Coil
UL 3122 16AWG
(1.25 m2)
3KV0.18*502.95200 ℃305
UL 3122 17AWG
(1.0 m2)
3KV0.20*322.75200 ℃305
UL 3122 18AWG
(0.75 m2)
3KV0.18*302.35200 ℃305
UL 3122 20AWG
(0.5 m2)
3KV0.18*202.15200 ℃305
UL 3122 22AWG
(0.35 m2)
3KV0.18*121.86200 ℃305
UL 3122 24AWG
(0.2 m2)
3KV0.18*718.81200 ℃305
UL 3320  (1.5m2)3KV0.254*303.35200 ℃305
UL 3320  (2.5m2)3KV0.254*503.80 200 ℃100

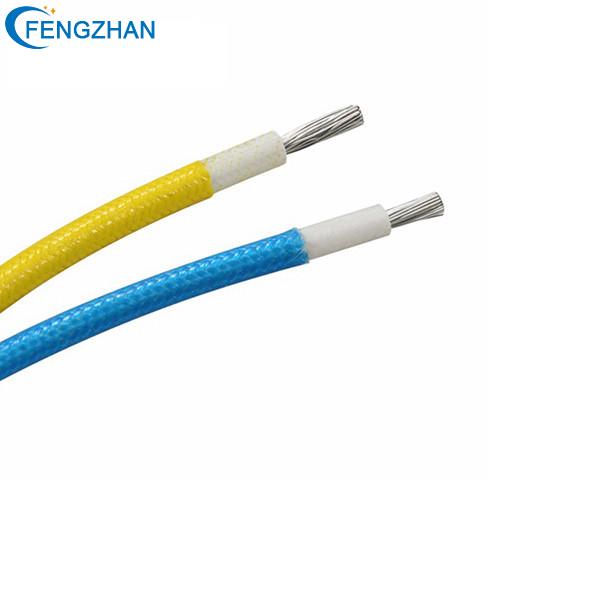

UL 3122 Wire

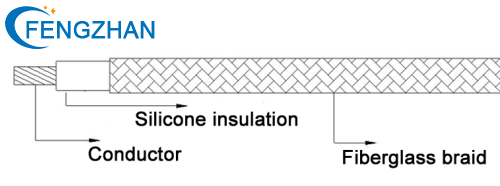

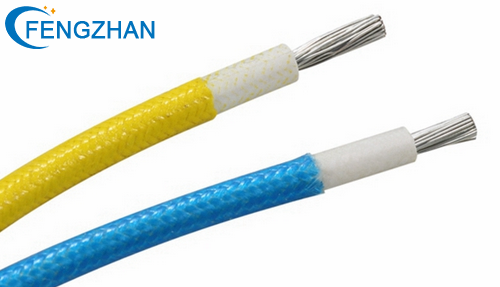

The insulating material is made of silicone rubber, the color is white or translucent, etc., and the protective layer is woven fiberglass.

1. The colors are: white, red, black, blue, green, yellow, brown, yellow-green, etc.,

2. Brand new environmentally friendly insulating material, high and low temperature resistance, abrasion resistance, oil stain resistance, corrosion resistance, good flexibility, and bright color;

3. Conductor copper wire: high-purity environmentally friendly tinned copper wire, brand new environmentally friendly, bright surface, anti-oxidation, environmentally friendly pure copper wire, low resistance, long service life;

4. Suitable for household appliances industry: air conditioners, microwave ovens, electronic disinfection cabinets, rice cookers, electric heaters, electric ovens, electric casserole, lamps and lanterns and other internal wiring, as well as various industrial machinery, lighting lamps, household appliances, electric heating products and other high temperature place

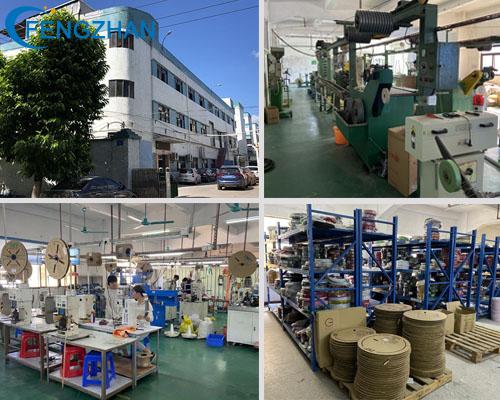

Dongguan Fengzhan Electronic Technology Co., Ltd

Dongguan Fengzhan Electronic Technology Co., Ltd

Dongguan Fengzhan Electronic Technology Co., Ltd

Dongguan Fengzhan Electronic Technology Co., Ltd

FAQ

1. Q: Are you a manufacturer or trading company?

A:  We are the leading manufacturer/supplier of heat resistant PVC, SILICONE, PTFE, ETFE wire and silicone wire in China,meanwhile,we produce halogen free and low smoke  XLPE wire,PVC wire,silicone cable and insulated sleeve/tube.


2. Q: What certifications do you have?

A:  We have UL, VDE, RoHS, REACH and SGS for our wires&cables.
