UL 3135 Silicone Wires

Conductor Material: Tinned Copper or copper
Conductor Type: Stranded
Insulation Material: Silicone
Color: Black, Yellow, Blue, etc

We can provide customers with ul 3135 silicone wire and high-quality electronic wire.

EMAIL

3135 Silicone Wires details

Silicone wires are used for power transmission lines for fixed installations or connecting cables for mobile electrical appliances with AC rated voltages of 0.6/1KV and below. The products have the characteristics of heat radiation, cold resistance, acid and alkali resistance, corrosive gases, and waterproofing.

Type

Conductor Construction

(No/mm)

OD

(mm)

Voltage

M/Coil

3135 10 AWG

( 880/0.08) Tinned Copper

5.50

600V

100 M/Coil

3135 12 AWG

(680/0.08) Tinned Copper

4.50

600V

100 M/Coil

3135 14 AWG

(400/0.08) Tinned Copper

3.50

600V

200 M/Coil

3135 16 AWG

(252/0.08) Tinned Copper

3.00

600V

200 M/Coil

3135 18AWG

(150/0.08) Tinned Copper

2.30

600V

305 M/Coil

3135 18AWG

(30/0.18) Tinned Copper

2.77

600V

305 M/Coil

3135 20AWG

(100/0.08) Tinned Copper

1.80

600V

305 M/Coil

3135 20AWG

(20/0.18) Tinned Copper

2.50

600V

305 M/Coil

3135 22 AWG

(60/0.08) Tinned Copper

1.70

600V

305 M/Coil

3135 22 AWG

(12/0.18) Tinned Copper

2.36

600V

305 M/Coil

3135 24AWG

(40/0.08) Tinned Copper

1.60

600V

305 M/Coil

3135 26 AWG

(30/0.08) Tinned Copper

1.40

600V

305 M/Coil

3135 28 AWG

(19/0.08) Tinned Copper

1.30

600V

305 M/Coil

3135 30AWG

(15/0.08) Tinned Copper

1.10

600V

305 M/Coil


3135 Silicone Wires Feature

1. Technical parameters

Rated voltage: 600V

Temperature range: 60℃-200℃

Conductor type: tinned copper wire

Insulation material: Silicone rubber

Outer diameter: standard

Product demonstration: red/blue/black/white/green/yellow, etc.

2. Product Usage

It is widely used in insulated wires in high temperature places such as LED, lighting fixtures, circuit boards, electronic appliances, medical equipment, mechanical equipment, new energy equipment, military and aviation fields.

3135 Silicone Wires

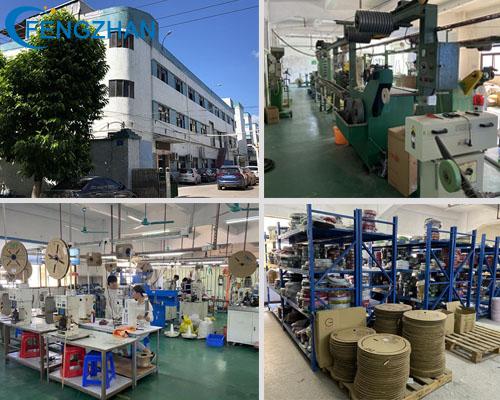

factory display1.jpg

factory display.jpg

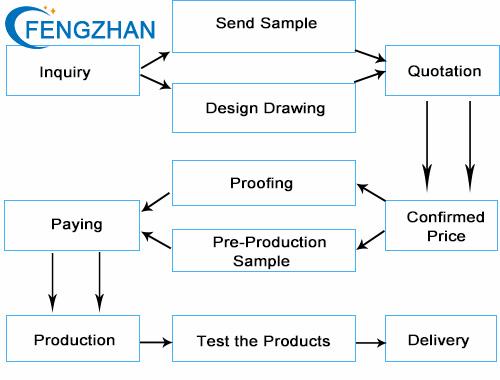

inquiry process.jpg
