UL 1015 PVC Hook Up Wires

Conductor: Tinned Copper
Insulation: PVC Insulation
Conventional sample free

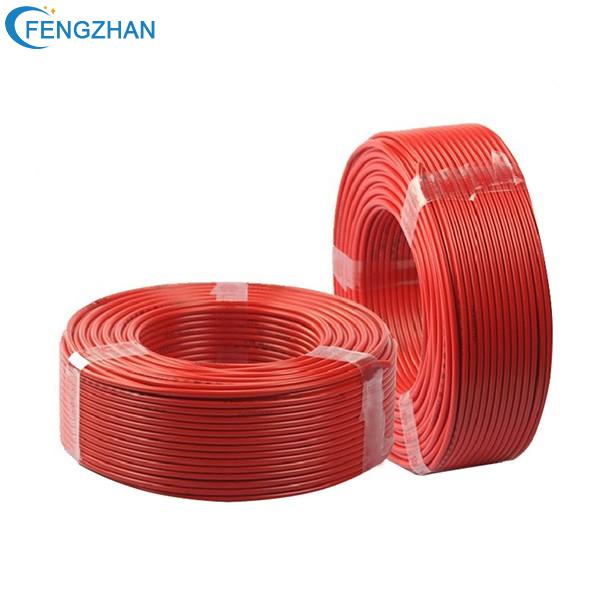

Packing: 305m/roll

Dongguan Fengzhan Electronic Technology Co., Ltd IS a manufacturer of pvc wires and cables in China. UL 1015 PVC Insulated wires are usually used for internal wiring of electronic appliances.

EMAIL

UL 1015 PVC Hook Up Wires Details

Rated temperature: 105℃, low temperature: -80℃.

Insulation: PVC (polyvinyl chloride) material.

Conductor: Copper.

Wire size: 16 AWG-26 AWG

Burning test: UL VW-1, CSA FT1.

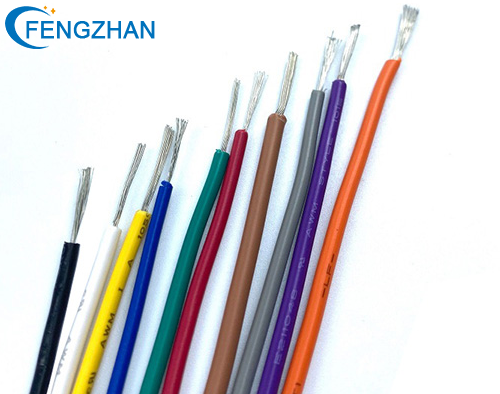

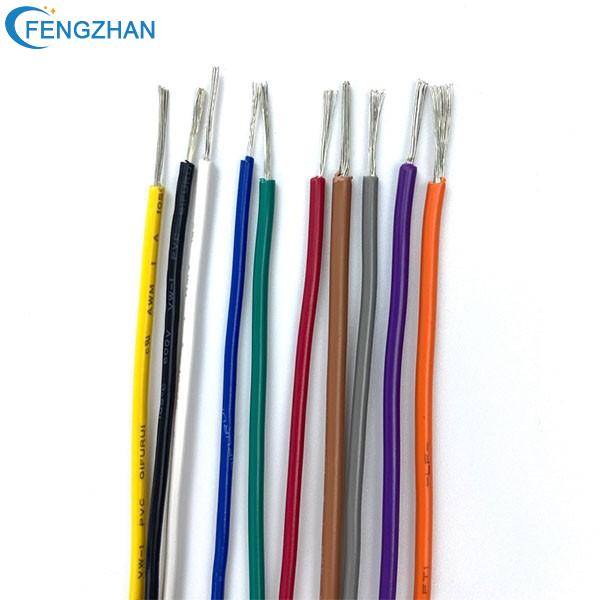

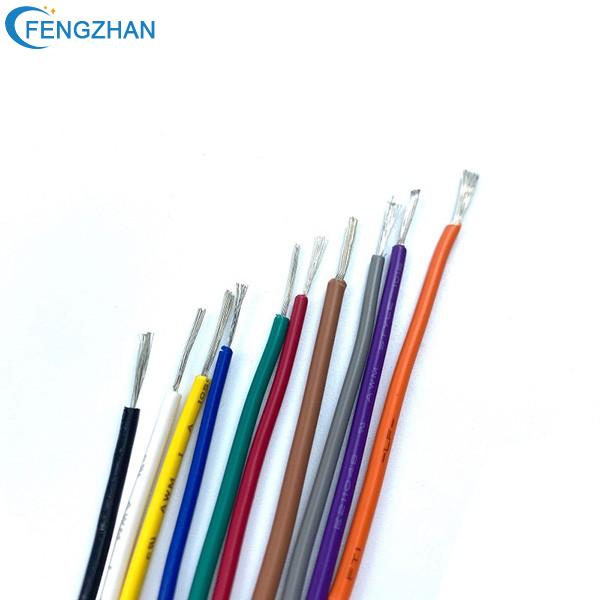

Color: white, red, black, etc.

Uses: electronic leads or internal wiring of electrical equipment, etc.

Conductor

Insulation
Thickness

Overall
Diameter

Stand Put-up

Conductor
Resistance
at 20℃

AWG

Construction



No/mm

mm

mm

Ft/coil

M/Coil

Ω/KM

UL 1015 28AWG

7/0.127

0.38

2

2000

610


UL 1015 26AWG

7/0.16

0.38

2.1

2000

610

139

UL 1015 24AWG

11/0.16

0.38

2.2

2000

610

88.7

UL 1015 22AWG

17/0.16

0.38

2.4

2000

610

57.4

UL 1015 20AWG

26/0.16

0.38

2.5

2000

610

34.6

UL 1015 18AWG

41/0.16

0.38

2.8

2000

610

21.8

UL 1015 16AWG

26/0.25

0.38

3.1

1000

305

14.2


UL 1015 PVC Hook Up Wires Features

1. Rated temperature: 105℃  rated voltage: 600V withstand voltage: 2000V

2. Use single or stranded bare copper or tinned copper above 30AWG for the conductor;

3. Can pass UL, CSA, vertical flame resistance test;

4. With resistance to acid and alkali, oil resistance, moisture resistance, mildew resistance, etc.;

5. Scope of application: It is used for connecting wires for important electronic equipment, instruments and meters.

1015 Electrical Wires

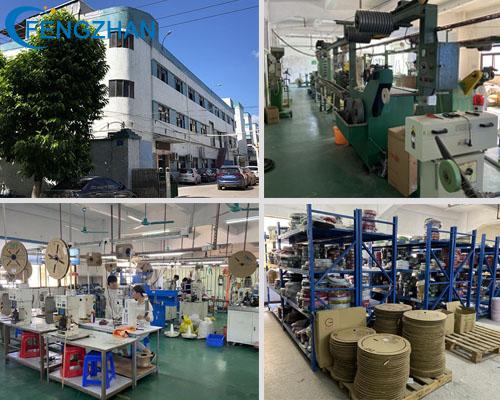

factory display1.jpg

factory display.jpg

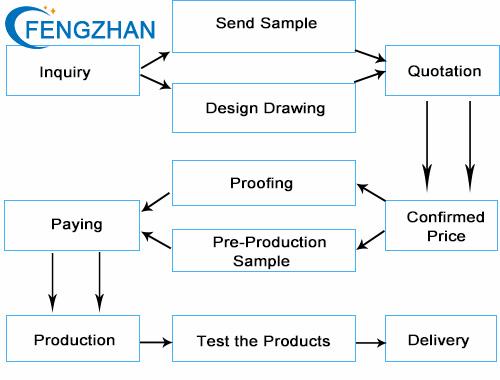

inquiry process.jpg
