  • UL2651
  • UL2651


UL2651 is an electronic wire that meets the environmental protection requirements under the EU ROHS standard and passed the American UL safety standard certification, and is generally used in weak current projects: such as internal wiring of electronics and electrical equi pment.


Product description

1. Rated temperature: 105℃ Rated voltage: 300V;

2. Standards: UL758, UL1581 and CSA C22.2 No. 210.2;

3. Can do 3P 4P 5P 6P 7P 8P 9P 10P 14P 16P 20P 26P 30P 34P 40P 50P 60P 64P etc. (P number varies from 3P to 64P)

4. The conductor uses plated twisted copper wire

5. PVC insulation, can pass UL VW-1 and CSA FT1 vertical flame test;

6. Use standard thickness, easy to peel and cut, with acid and alkali resistance, oil resistance, moisture resistance, mildew resistance and other characteristics

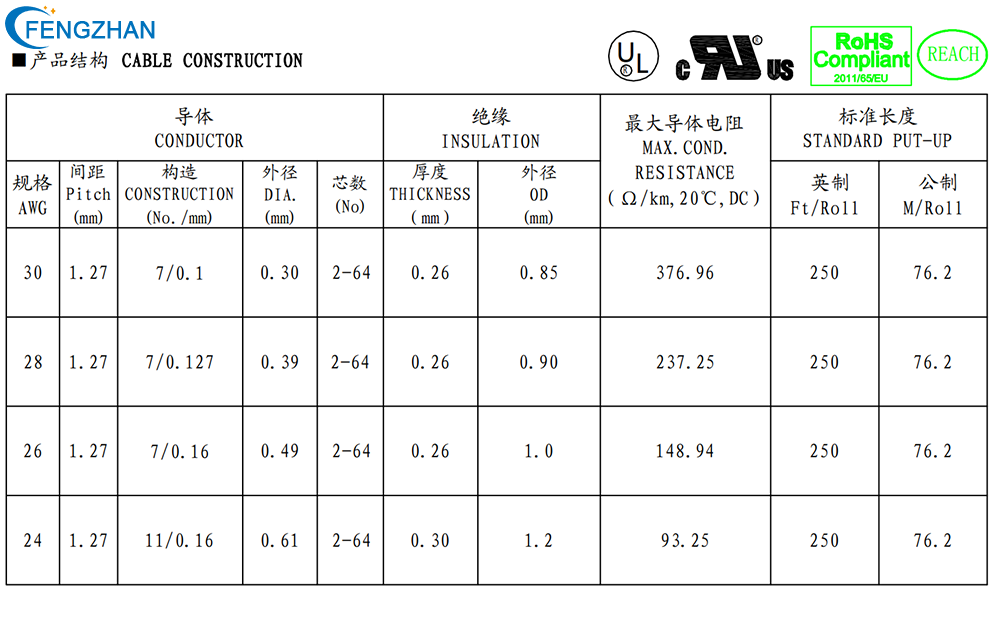

ul2651 data sheet.png

UL2651 is mainly used in connecting wires of household appliances, lighting fixtures, electronic equipment, temperature sensors, aerospace, military products, metallurgy and chemical industry, communications, automobiles and ships, and power installations.
