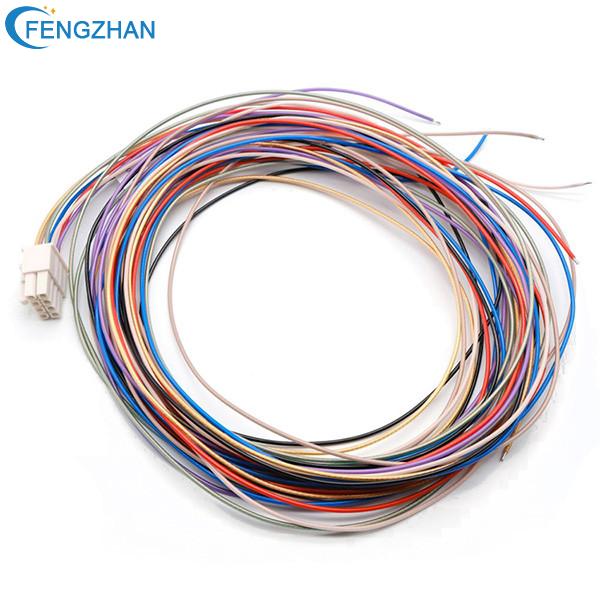

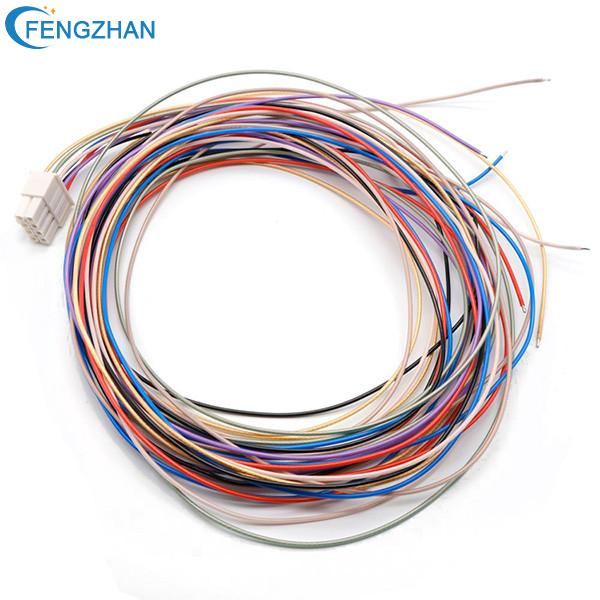

Led Wiring Harness Extension Cable

Place of Origin: Guangdong, China
Application: Home Appliance, household appliance

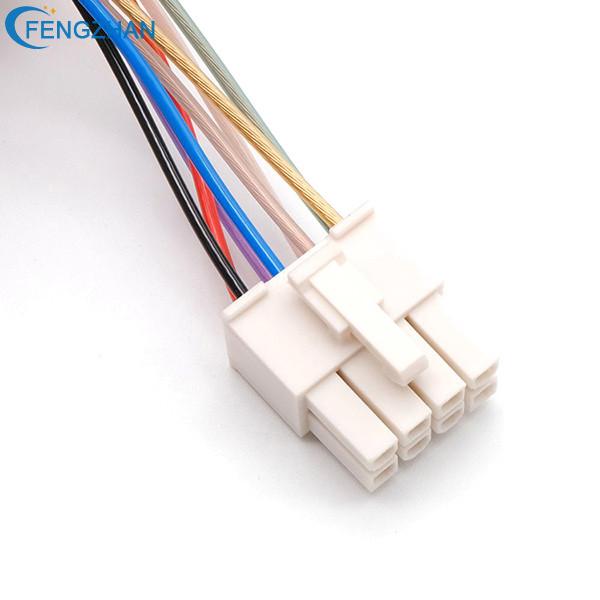

Connector: MX3.0-8 Pin male housing
Cable: UL1007
End finish: 3 mm tinned
Length: 2000 mm

EMAIL

wire product details

Led Wiring Harness Details

Application: Home Appliance
Length: Customizable
Pitch: 2.0mm 3.0mm 3.96mm
Insulation Material: PVC Electrical Wire Cable
Express: DHL FEDEX UPS TNT
Sample: Avaiable
Type: Custom-made Cabley Assembly
Service: OEM ODM Accept
MOQ: 1000pcs

wire application

Wiring Harness

Led Wiring Harness Feature
The conventional LED display power supply we use is 200W or 300W, and the module power cord is connected to the module power socket at 5V (or 4.5V). The power input terminal (220V) wire connection sequence is: red (live wire or phase wire) to the "L" terminal, blue (zero or neutral) to the "N" terminal, and yellow (ground wire) to the "ground" Terminal.

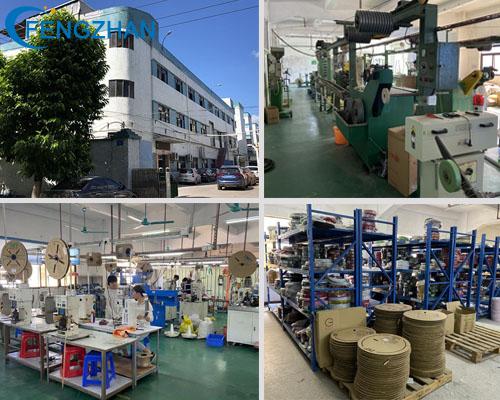

factory display

factory display

inquiry

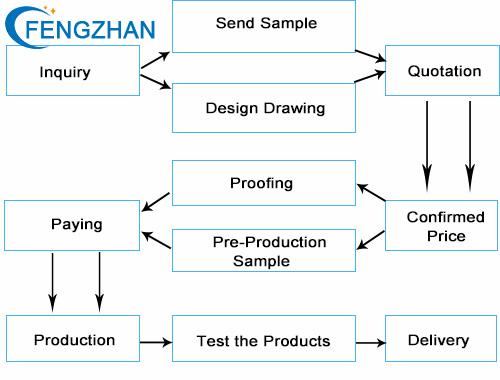

inquiry process
