  • LED Light Wiring SM Male 2 pin Ribbon Cable
  • LED Light Wiring SM Male 2 pin Ribbon Cable
  • LED Light Wiring SM Male 2 pin Ribbon Cable
  • LED Light Wiring SM Male 2 pin Ribbon Cable
LED Light Wiring SM Male 2 pin Ribbon CableLED Light Wiring SM Male 2 pin Ribbon CableLED Light Wiring SM Male 2 pin Ribbon CableLED Light Wiring SM Male 2 pin Ribbon Cable

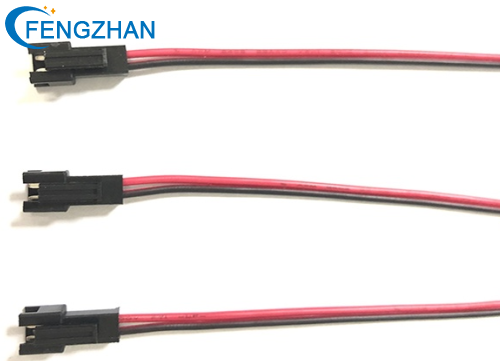

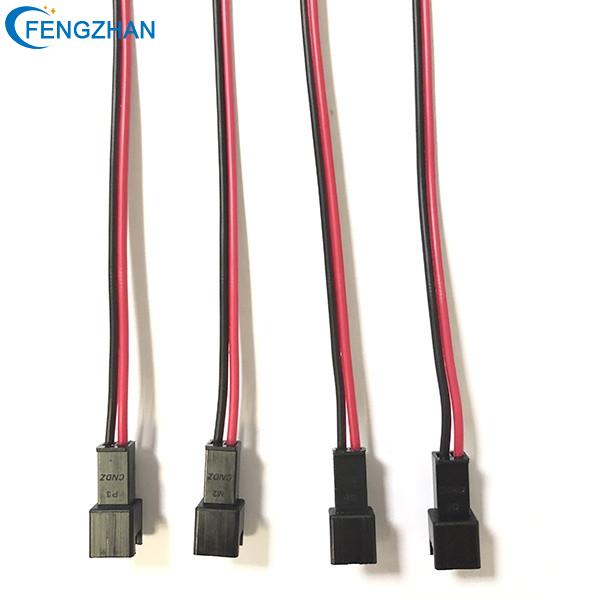

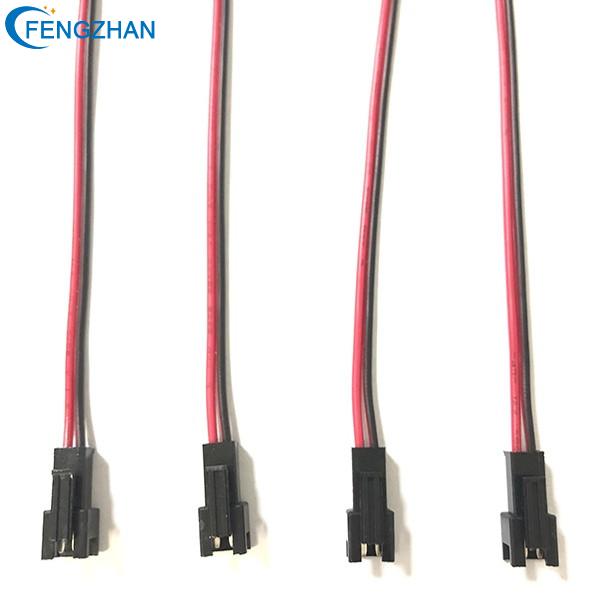

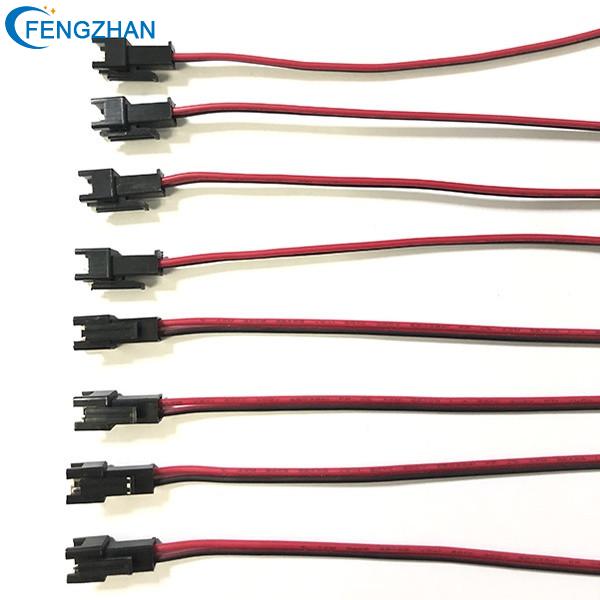

LED Light Wiring SM Male 2 pin Ribbon Cable

Place of Origin: Guangdong, China
Color: black, red

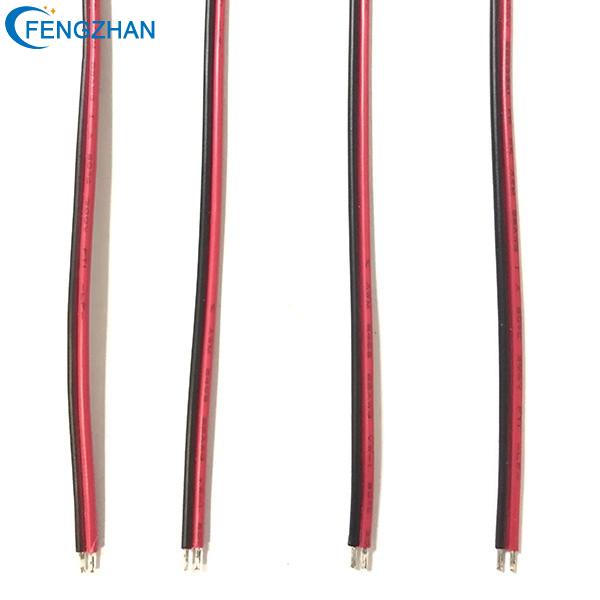

Wire Type: UL2468 22AWG
Wire Length: 210mm
Terminal: SM Terminal
Connector: SM Male
Light Source Type: LED
Voltage: 12 Volts
Trial Order: 1000 pcs

EMAIL

product details.png

LED Light Wiring Harness Feature

1. AVAILABLE LEADS: With lights output connections,it can hook with led work light or led light bar.

2. UNIVERSAL FITMENT: This wiring harness for led light bar is compatible with driving light, fog light, work Light etc.

3. Compatible with All Automobiles and Devices Equipped with 12 Volt DC Power Source

4. Easily Connects any Lighting Accessory to its Power Source by Tapping into the Battery Directly.

LED light wiring

The LED light wiring steps are as follows:

1. First install the current-limiting resistor to the negative pole of the power cord.

2. Then separate the positive and negative wires of the LED strip.

3. Use a stripper to remove the positive wire of the LED strip.

4. Connect the negative wire of the power supply to the positive wire of the LED light bar.

5. Then connect the negative lead of the LED to the current limiting resistor

wire hanress application.png

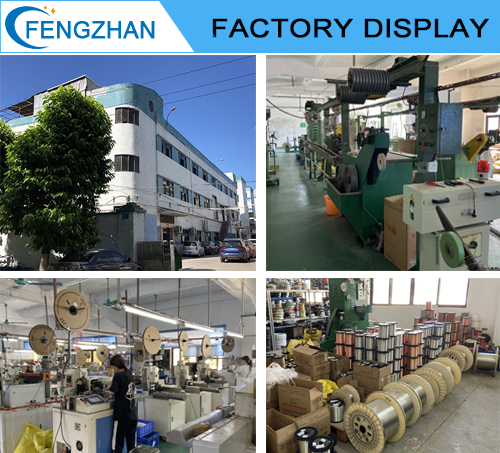

wire factory display.png

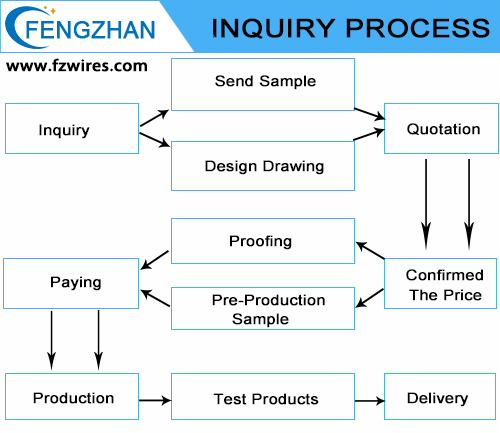

inquiry process.png
