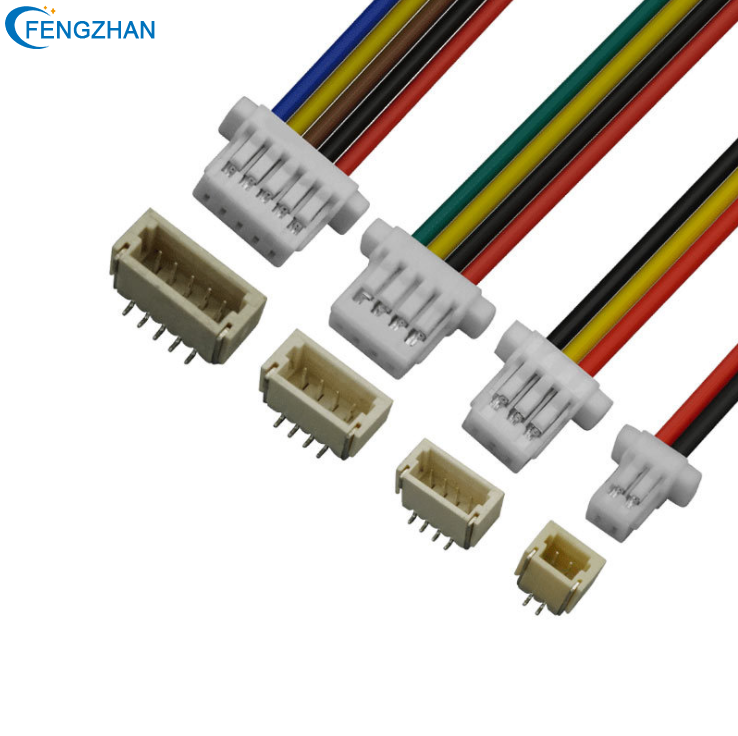

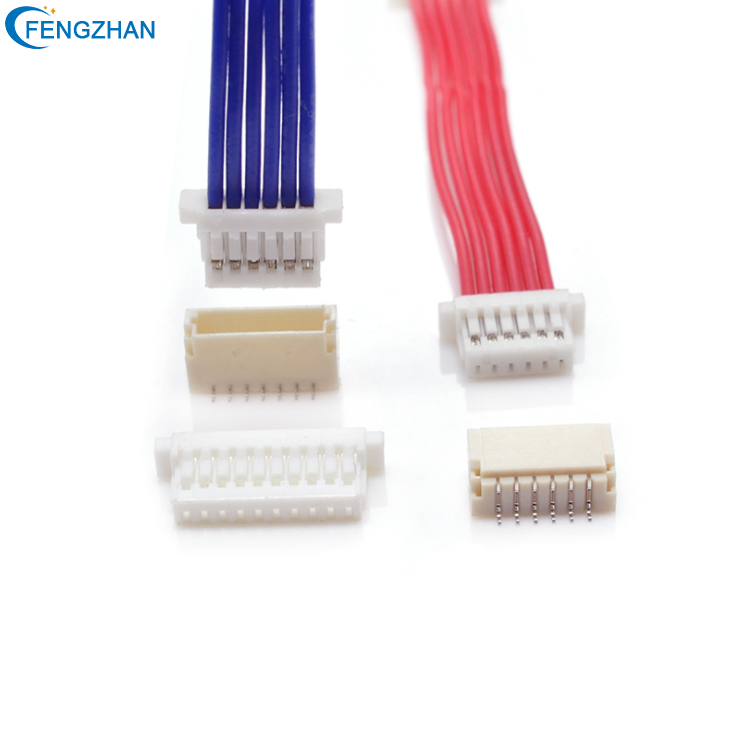

JST SH 1.0 Connector Cable Harness

JST SH 1.0 Connector Cable Harness Details

Connector: JST SHR

Pitch：1.0mm

Material：Terminal - phosphor bronze

Housing - nylon

Poles:2~20P

Applicable wires:AWG30#

Temperature range:-25℃~85℃

Voltage rating:50V AC,DC

Current rating:0.5A  AC,DC

Contact resistance:≤0.03Ω

Insulation resistance:≥500mΩ

Withstand voltage:500V.AC/minute

JST SH 1.0 Connector Cable Harness Feature

1. Environmentally safe material is impact resistant and corrosion resistant

2. Specification diversification supports customization

3. Fine workmanship beautiful and durable

4. Professional material and surface treatment technology

Confirmation of connector model

1.what are the part No. and pitch?

2.What pin do you require?

3.The picture or drawing provided will be fine.

Confirmation of cable wire model

1. What the material of the wire?

2. Are they single,flat ribbon or multi-core wire?

3.What is the wire AWG?

4.What the wire color do you require？

5. What the wire length do you require?

Wire Harness processing method

1. 1 to N

2. 1 to 1

3. tin dipped/end cut/semi-strip

Note：If the other end of the wire are tin dipped or semi-strip, what's the length for tin dipped or semi-strip?

FAQ

1. who are we?

We are based in Jiangshu, China, start from 2021,sell to Southeast Asia(40.00%),North America(30.00%),Eastern Europe(30.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

wire harness,harness,wiring harnesses,cable assembly,charge cable

4. why should you buy from us not from other suppliers?

Service Quality Price forever
