The role of wiring harness in electrical signal transmission

The vast majority of electrical equipment, such as TVs and computers, need to use Wire Harnesses. The structure of the wire harness is mainly to connect the terminals at both ends of the wire to conduct electricity and transmit signals. Almost all TVs display images through terminal cables.

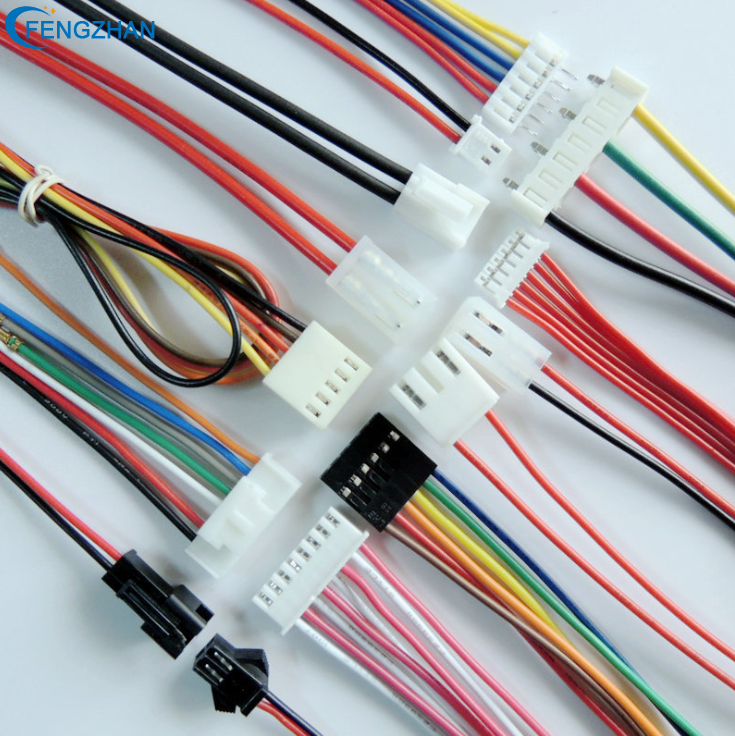

electrical harness4.jpg
Various electrical equipment that transmits signals transmits the image signal to the set-top box of the electrical equipment through the wiring harness, and then sends it to a part called the decoder of the video signal through the set-top box. The decoder decomposes the received video signal into two parts, one part. It is the sound signal, and the other part is the color signal. Then the two parts of the signal are transmitted to the display screen of the electrical equipment through the terminal connecting line.

Therefore, the manufacture of wiring harness has very strict requirements, and it must meet the regulations before it can be applied to electrical appliances. Many computers on the market have their own graphics cards, and the graphics cards also have some video output functions. If you want to output successfully, this kind of terminal cable is also essential.
