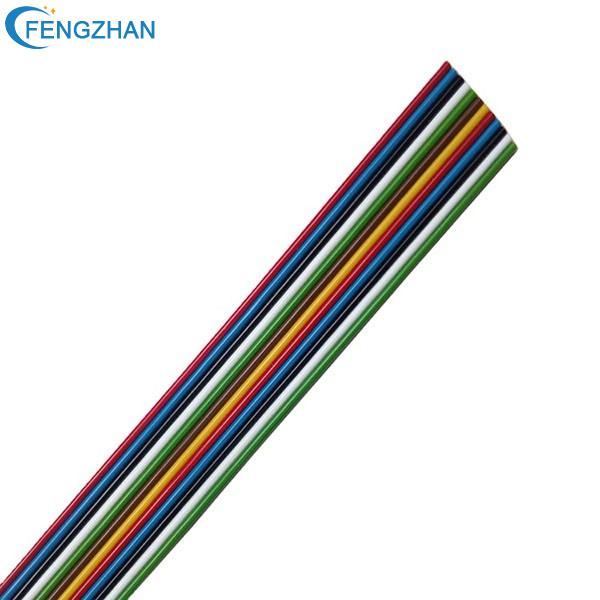

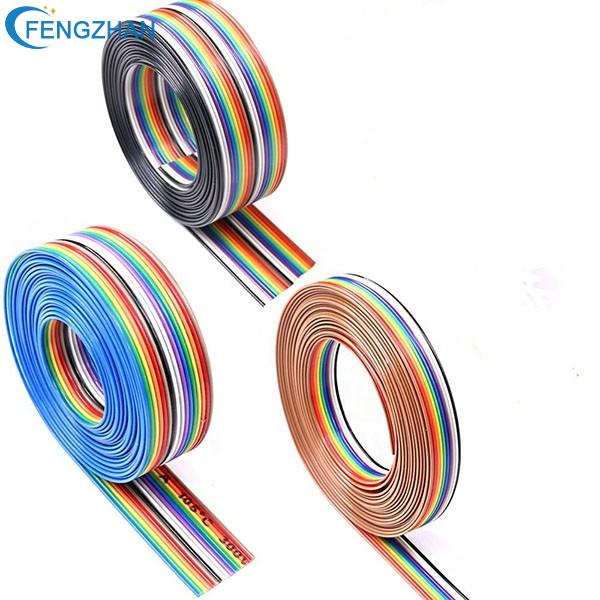

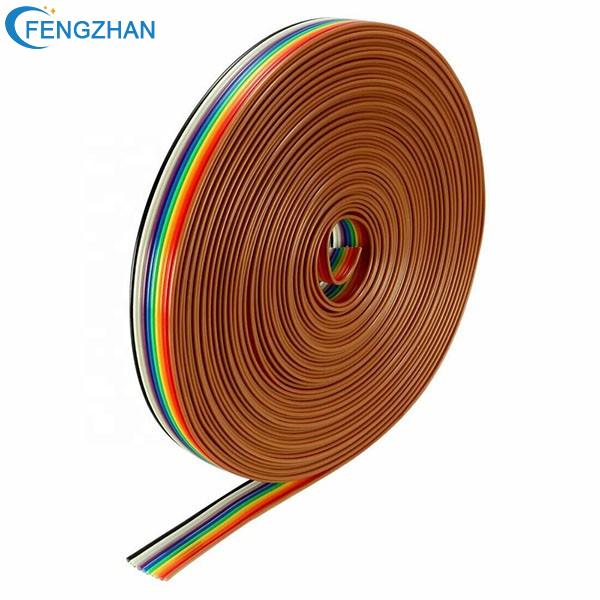

UL 2468 Flat Ribbon Cables

Application: internal wiring of electronic equipment
Conductor Material: tinned copper or bare copper
Conductor Type: stranded
Insulation Material: PVC
Rated Voltage: 300V
Rated Temperature: 80℃

EMAIL

2468 Flat Ribbon Cables Details

Tinned or top-coated,stranded copper conductor

Rated temperature:80℃

Rated voltage:300Volts

Passes VW-1 vertical flame test

Resistant to acids,alkalies.Moisture and fungus

Flat Ribbon Cable

www.fzwires.com

Conductor Construction

(No/mm)

OD

(mm)

M/Coil

UL2468 30AWG*2C

 7*0.10(Tinned Copper)

1.1*2.2

610 M/Coil

UL2468 28AWG*2C

7*0.127(Tinned Copper)

1.3*2.6

610 M/Coil

UL2468 26AWG*2C

7*0.16(Tinned Copper)

1.4*2.8

610 M/Coil

UL2468 24AWG*2C

11*0.16(Tinned Copper)

1.5*3.0

610 M/Coil

UL2468 22AWG*2C

17*0.16(Tinned Copper)

1.7*3.4

610 M/Coil

UL2468 20AWG*2C

21*0.178(Tinned Copper)

1.8*3.6

610 M/Coil

UL2468 18AWG*2C

34*0.178(Tinned Copper)

2.3*4.6

610 M/Coil

UL2468 16AWG*2C

26*0.25(Tinned Copper)

2.5*5.0

610 M/Coil

UL2468 26AWG <2C

7*0.16(Tinned Copper)

1.5

610 M/Coil

UL2468 24AWG <2C

11*0.16(Tinned Copper)

1.5

610 M/Coil

UL2468 22AWG <2C

17*0.16(Tinned Copper)

1.7

610 M/Coil

UL2468 28AWG <2C

7*0.12(Tinned Copper)

1.4

610 M/Coil

2468 Flat Ribbon Cables Feature

UL2468 flat ribbon cable, its general nominal name is AWG (American Wire Gauge) as the unit, and the internal conductor should be divided into bare copper and tinned copper according to normal standards. It is suitable for internal wiring of general electronics and electrical appliances, such as audio-visual equipment, etc. It has the characteristics of acid and alkali resistance, oil resistance, heat resistance, humidity resistance, mold resistance, etc.

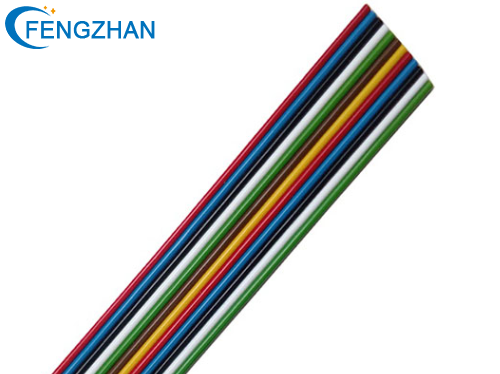

UL2468 flat ribbon cable

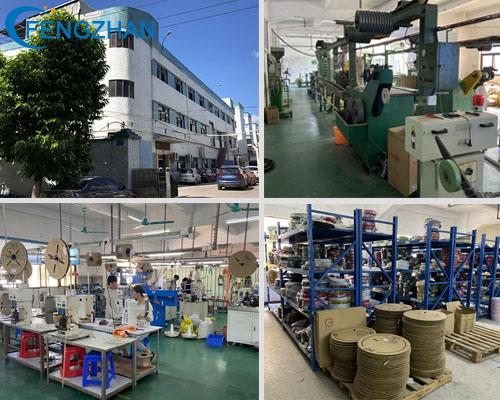

factory display1.jpg

factory display.jpg

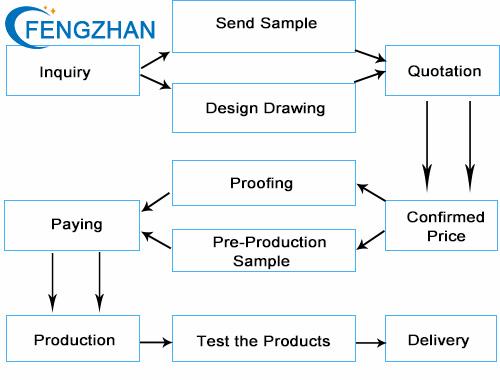

inquiry process.jpg
