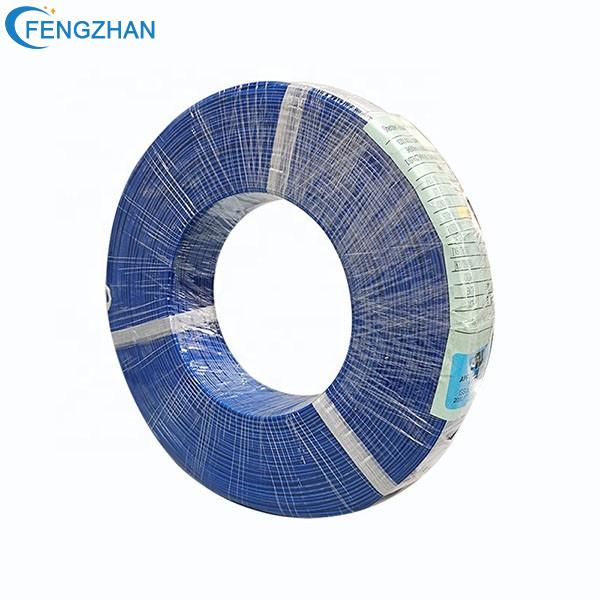

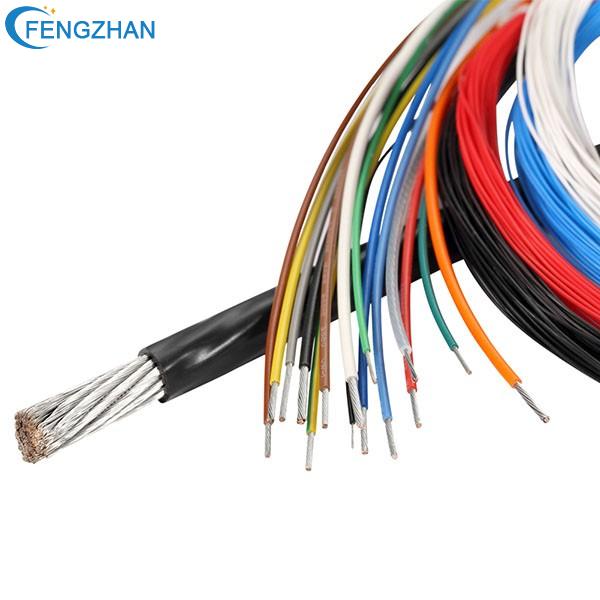

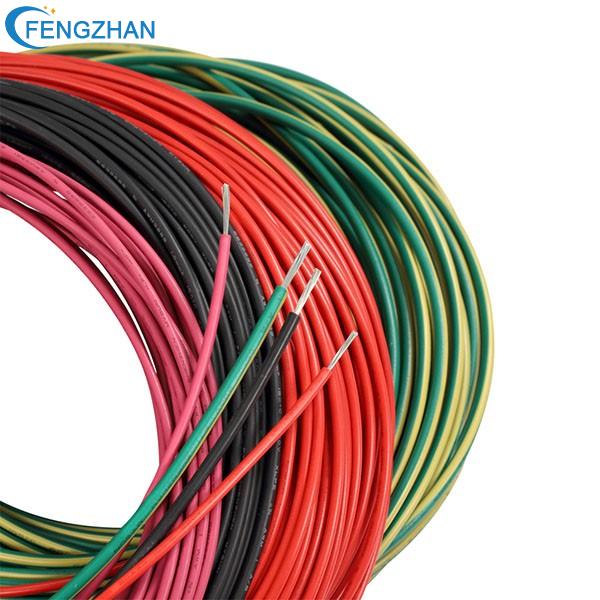

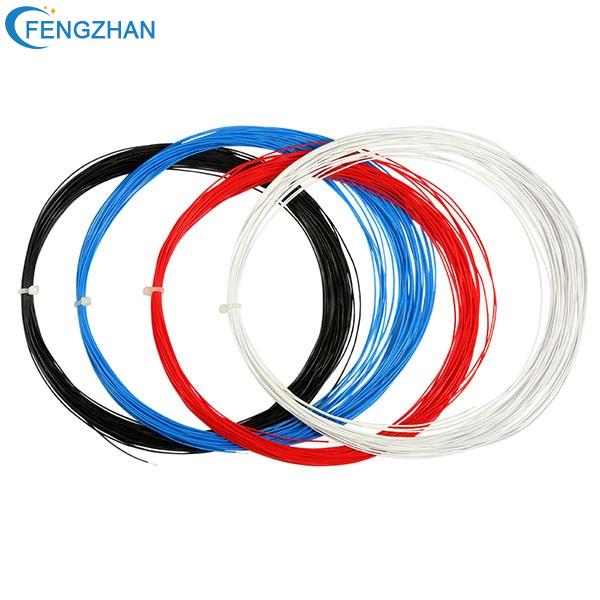

UL 1430 Hook Up Wires

Conductor Type: Stranded
Insulation Material: PVC
Conductor: tinned copper
Color: red yellow white green

UL 1430 PVC hook-up wires are usually used for internal wiring of electronic appliances.

EMAIL

1430 Hook Up Wires Details

*Model Number: UL1430

*Type: insulated

*Application: Low temperature, wiring

*Conductor Material: Copper

*Conductor Type: Stranded

*Insulation Material: PVC

*Temperature Range: 105 degree

*Rated Voltage: 300V

*Color: White, black, red, etc

*Conductor: Bare or tinned copper

Conductor

Insulation
Thickness

Overall
Diameter

Stand Put-up

Conductor
Resistance at 20℃

AWG

Construction

Ft/coil

M/Coil

No/mm

mm

mm

Ω/KM

UL1430 30AWG

7/0.10

0.38

1.1

2000

610

381

UL1430 28AWG

7/0.127

0.38

1.2

2000

610

239

UL1430 26AWG

7/0.16

0.38

1.3

2000

610

150

UL1430 24AWG

11/0.16

0.38

1.4

2000

610

94.2

UL1430 22AWG

17/0.16

0.38

1.6

2000

610

59.4

UL1430 20AWG

21/0.178

0.38

1.7

2000

610

36.7

UL1430 18AWG

34/0.178

0.38

2.1

2000

610

23.2

UL1430 16AWG

26/0.25

0.38

2.4

2000

610

14.6

UL1430 hook up wires is oil, bent and high temperature resistant. UL 1430 Wire is applied to the internal wiring of general electronic and electrical equipment, such as: internal mechanical wiring, lighting and lamp wiring, electronic wiring, LED film group wiring, household appliance wiring, automobile wiring, substation cabinet, power distribution Box, transformer wire, etc.

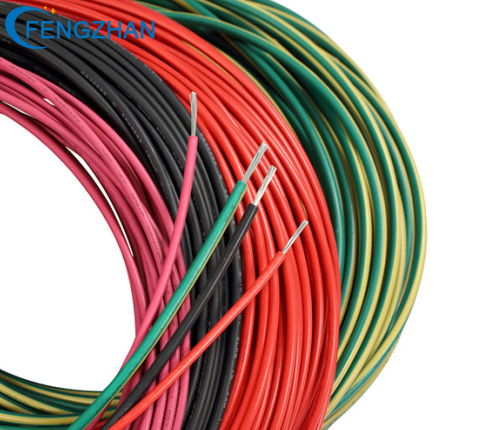

UL1430 hook up wires

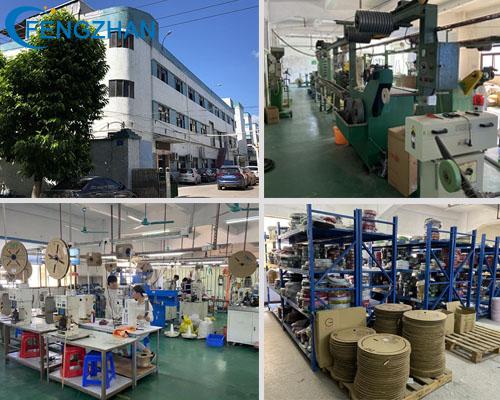

factory display1.jpg

factory display.jpg

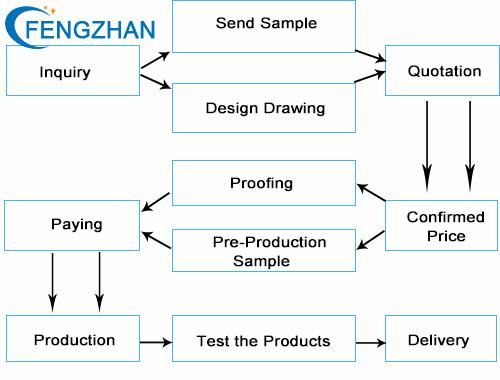

inquiry process.jpg
