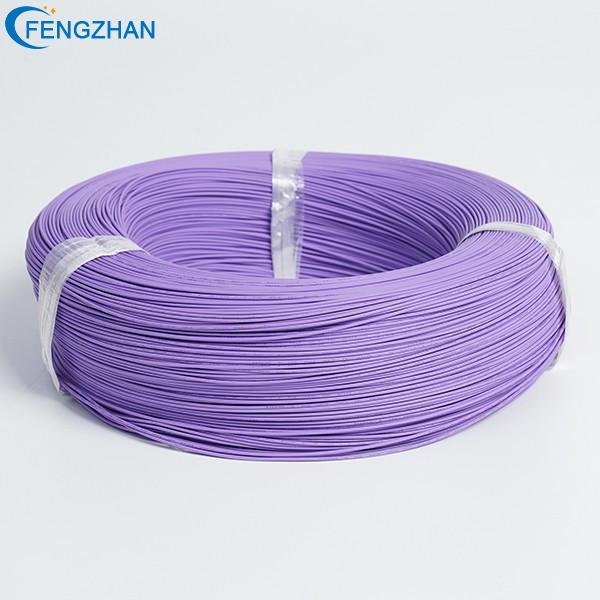

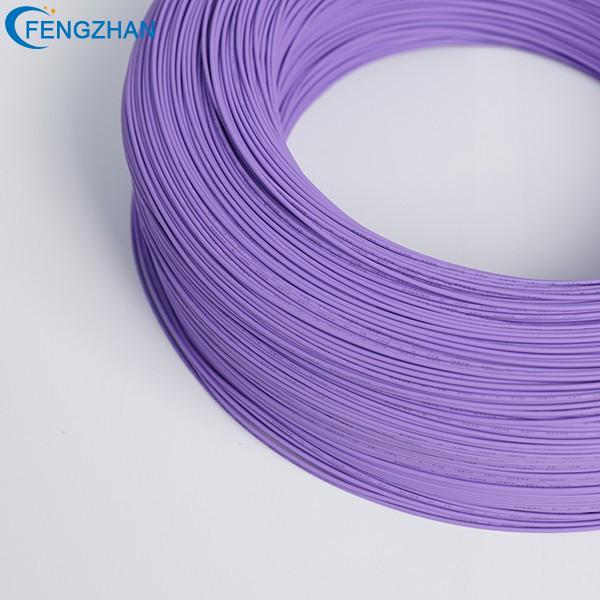

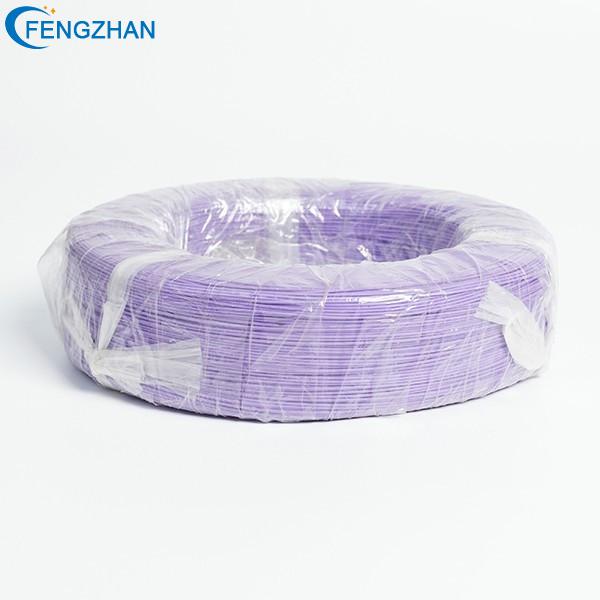

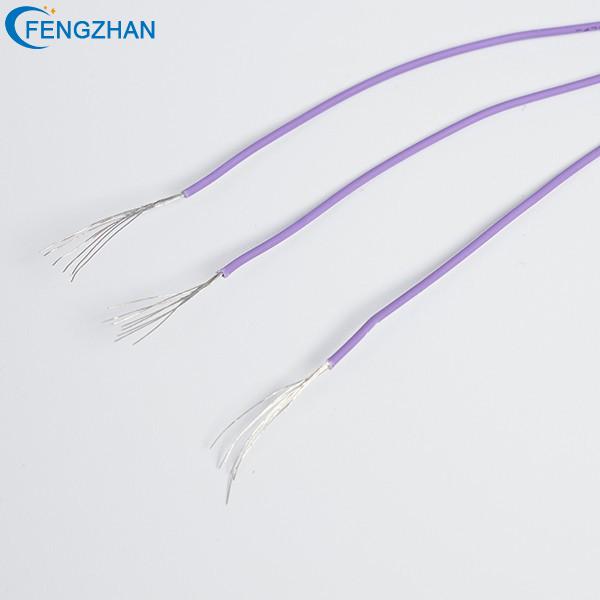

UL3302 XLPE Wire 105°C 30V Halogen Free Cable

Place of Origin: Guangdong, China
Model Number: UL3302
Type: insulated
Application: general purpose internal wiring of appliance
Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: XLPE

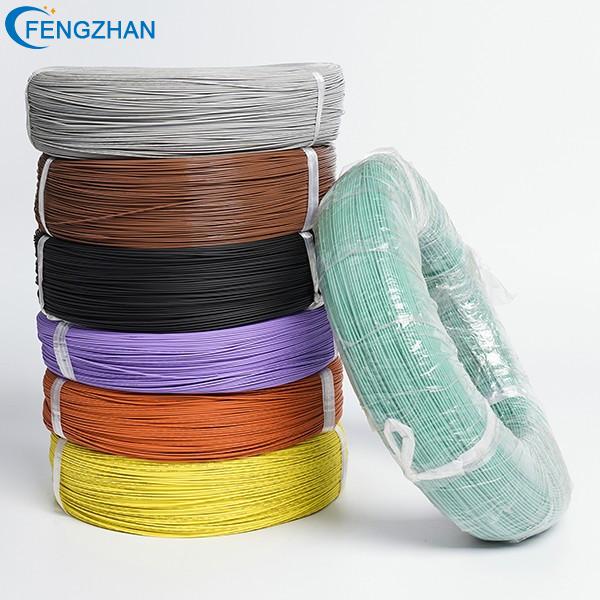

Colors: Optional
Service: ODM,OEM
Certification: ROHS/UL/SGS

EMAIL

product details.png

UL3302 Wire Details
Low-smoke halogen-free wire refers to the halogen material of the insulation layer of the wire. When it is burned, it does not release halogen-containing gas and has a low smoke concentration.

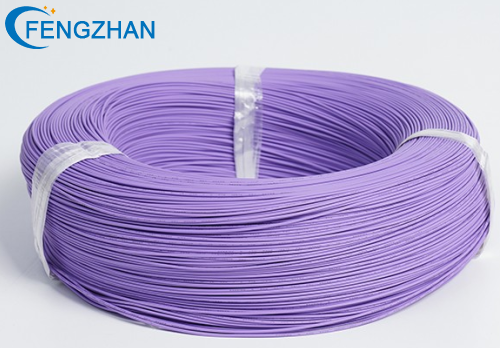

UL3302 Wire.png

UL3302 Wire Feature

UL3302 is a halogen-free cross-linked electronic wire. The insulating material is made of high-energy electronically modified halogen-free polyolefin material.

1. It has the same requirements as general cross-linked electronic wires in terms of electrical and physical and mechanical properties, and has high temperature resistance.

2. Long service life, good mechanical properties, etc., but it does not contain halogen, does not contain lead, cadmium, mercury, arsenic, chromium, selenium, antimony and barium 8 metal elements, does not contain environmental hormones, does not pollute the surrounding environment;

3. Good performance, less smoke when burning, no harmful gas generated;

4. The conductor adopts high-quality copper wire, which has excellent electrical properties.

UL3302 Wire Specification

XLPE Hook
Wire Size
Conductor Construction
(No/mm)
OD
(mm)
20℃ Conductor Resistance
(Ω/km)
Package
(M/Reel)
UL3302 20AWG26/0.161.4636.7305
UL3302 22AWG17/0.161.2894.2610
UL3302 24AWG11/0.161.13150610
UL3302 26AWG7/0.161239610
UL3302 28AWG7/0.1270.9381610
UL3302 30AWG7/0.100.8631610


UL3122 halogen-free cross-linked electronic wire meets the RoHS standard in terms of environmental protection requirements, and the product has passed the American UL, and is widely used in electrical appliances, motors, electronics and other equipment.

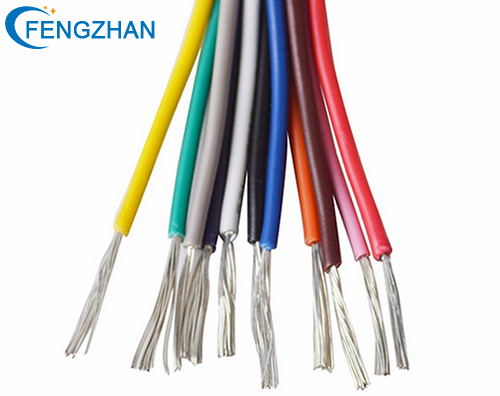

UL3302 Wire.png

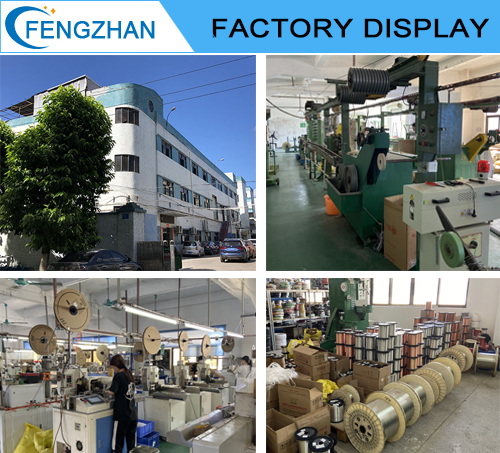

wire factory display.png

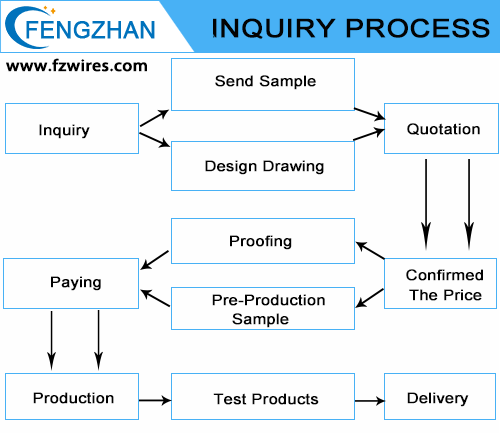

inquiry process.png
