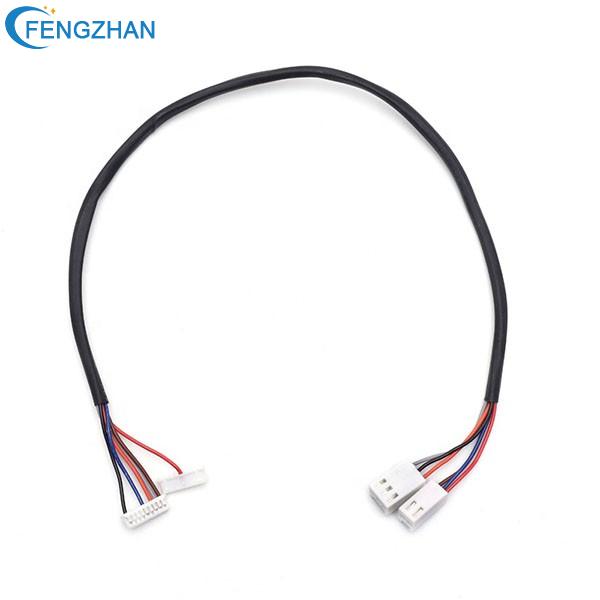

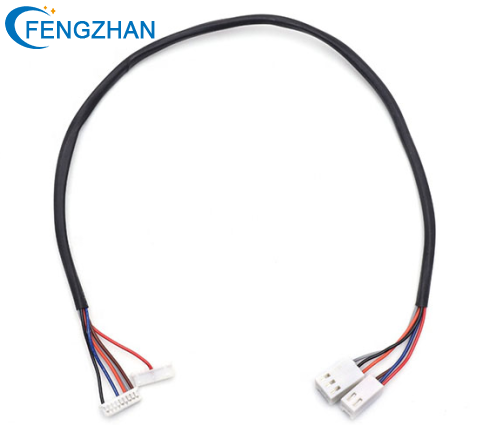

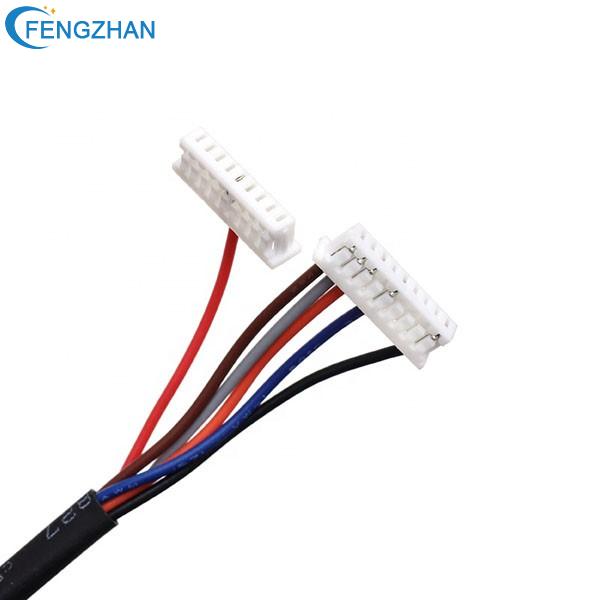

UL 1571 Wires 2510 Connectors Cable Assembly

Cable Assembly Details

Application: home appliance

Cable: ul 1571 26awg (7/0.16ts)

Wire Colors: black, blue, orange, grey, brown, red

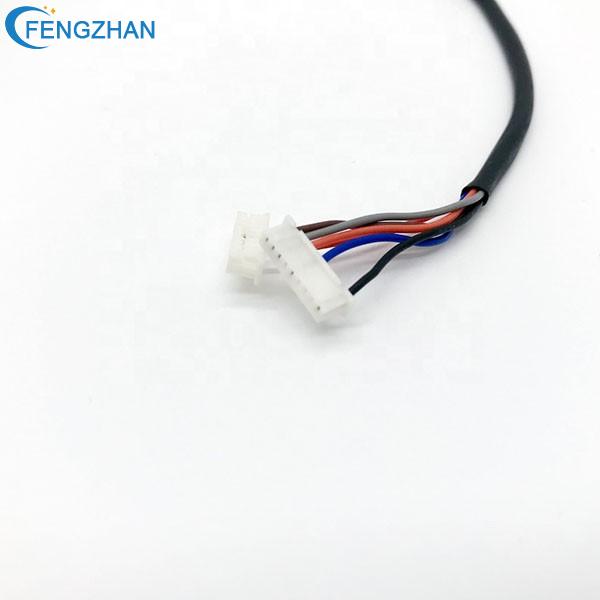

Housing :molex 51021-0900, 0022012035, 0022012026

Terminal : molex 50079-8000, 08-50-0113

Insulation Material: PVC

Certification:UL/ROSH/Reach

Cable Assembly Feature

Number of bits: 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P, 10P, 11P, 12P, 13P, 14P, 15P, 16P 510 terminal 2P to 16P connection lines and other products

Material: plastic shell (PA66 nylon), needle holder (plastic shell: PA66 nylon, needle: brass, tinned on the outside), terminal (copper, tinned on the outside), wire (sheath: PVC, inner core: copper)

Fire rating: 94V-2

Line length: according to customer requirements

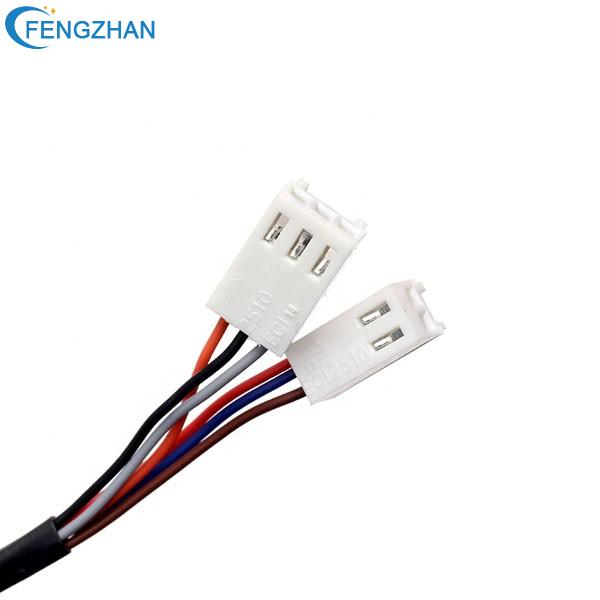

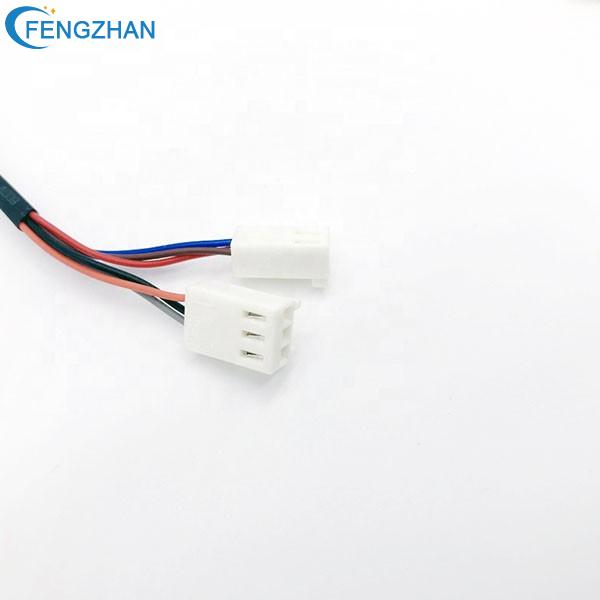

2510 connector, the spacing is 2.5mm, the number of holes is generally 2 to 16 digits, divided into 2510 straight needle seat and 90 degree curved needle. The color is generally white.

The 2510 pin header is generally used on circuit boards, that is, printed circuit boards, as connectors. The rated current is about 3A, the rated voltage is 250V, and the temperature is generally between -25 degrees and 85 degrees. If the working environment is high temperature, it needs to be customized for high temperature resistance.
