Common Specifications And Models Of Wiring Harness

1. The specifications of the wiring harness are as follows:

There are various pitch flexible cables such as 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm, etc.

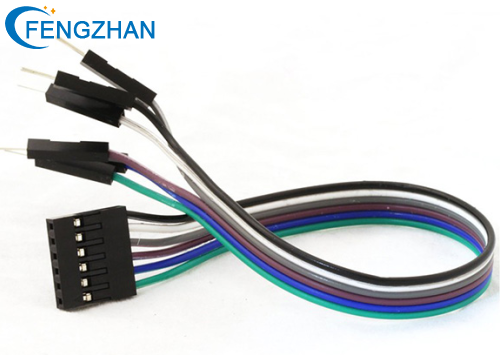

wiring harness.png

2. The common models of wiring harness are as follows:

Type A: Both ends are connected and the reinforcing plate is pasted on the insulating tape;

Type B: Cross the reinforcing plate and paste it directly on the insulating tape;

Type C: The reinforcing plates at both ends are directly pasted on the conductor;

Type D: Cross the reinforcing plates at both ends and paste directly on the conductor; Shajing terminal wire;

Type E: one end of the reinforcing plate is attached to the insulating tape, and the other end is directly soldered;

Type F: The reinforcing plates at both ends are directly attached to the insulating tape, and the inner half is peeled off;

Type G: Direct soldering at both ends.

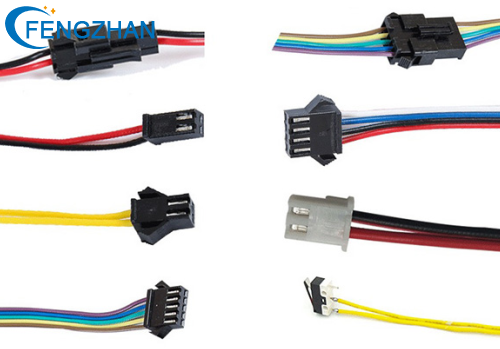

 wiring harness.png

3. FFC technical parameters:

Number of conductors N: the number of copper conductors in the cable;

Pitch P: The distance between the center lines of two adjacent conductors;

Margin M: The distance between the center line of the outermost conductor and the edge of the cable:

Full pitch TP: the distance between the center lines of the outermost two conductors, TP=P*(N-1);

Total width W: the distance between the two edges of the cable, W=P*(N 1);

Total length TL: the distance between the two ends of the cable;

Insertion thickness TT: the thickness of the two connecting ends of the cable;

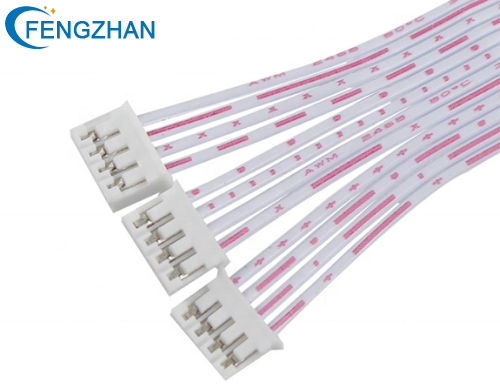

wiring harness.png

At present, the wiring harness is widely used in the connection between the print head of various printers and the motherboard, the signal transmission and board connection of plotters, scanners, copiers, speakers, LCD appliances, fax machines, various DVD players and other products. In modern electrical equipment, it is almost everywhere.

wire hanress application.png

Dongguan Fengzhan Electronic Technology Co., Ltd is a professional comprehensive electronic wire manufacturer integrating R&D, production, sales and service. The main products are: Wire Harnesses, electronic wires, flat ribbon cables and multi-core cable, support wholesale, customization, reasonable prices, have a large sales team and a strong production team, and high-quality and high-volume fully automatic production equipment.
