PCB Wiring and Current

Generally, when designing a pcb factory, it will consider the PCB wiring width and current. Then what is the relationship between the PCB wiring width and the current? Let's take a look at the relationship between the PCB wiring width and the current.

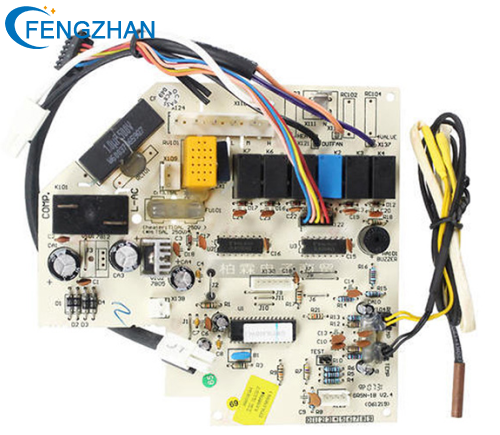

PCB board wiring harnesses.png

Calculation method First calculate the cross-sectional area of the track. Generally, the copper foil thickness of many PCB boards is 35um, and then multiply it by the line width to get the cross-sectional area, and then convert it to square millimeters.

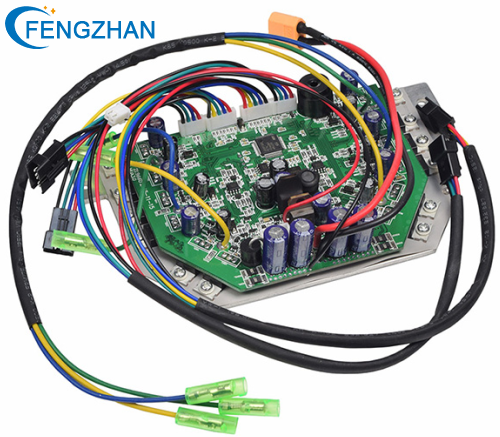

PCB board wiring harnesses

There is an empirical value of current density, which is 15-25 A/mm2. T is the maximum temperature rise, the unit is degrees Celsius (the melting point of copper is 1060°C) A is the copper cross-sectional area, the unit is square MIL I is the maximum allowable current, the unit is ampere (amp) 10mil=0.010inch=0.254 can be 1A .

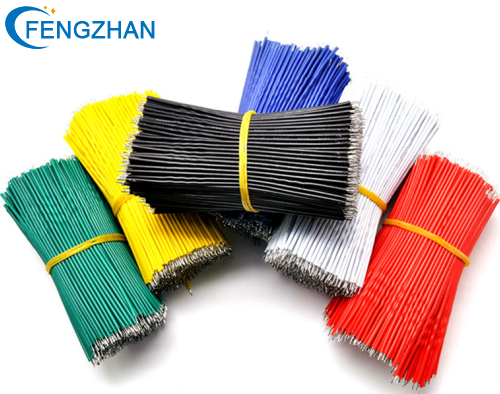

PCB board jumper Wire

Dongguan Fengzhan Electronic Technology Co., Ltd specializes in manufacturing PCB board wiring harnesses and PCB board jumper Wire. Inquiries are welcome.
