PCB Board Wiring Harness Introduction

PCB board Wire Harness refers to the wiring terminal used in the electrical connection of printed circuit boards, which is called PCB terminal wire or PCB connector in the industry, and is an accessory product used to realize electrical connection.

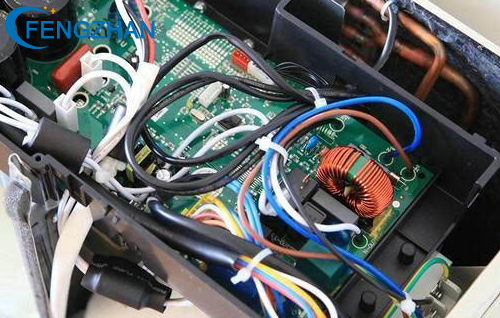

PCB board wire harness

The printed circuit board is mainly composed of pads, vias, mounting holes, wires, components, connectors, filling, electrical boundaries, etc. The main functions of each component are as follows:
Pad: A metal hole used to solder the pins of components.

Via: A metal hole used to connect the pins of components between layers.

Mounting hole: used to fix the printed circuit board.

PCB Wire: The copper film of the electrical network used to connect the pins of the components.

Connectors: components used to connect between circuit boards.

Filling: Copper coating for ground wire network, which can effectively reduce impedance.

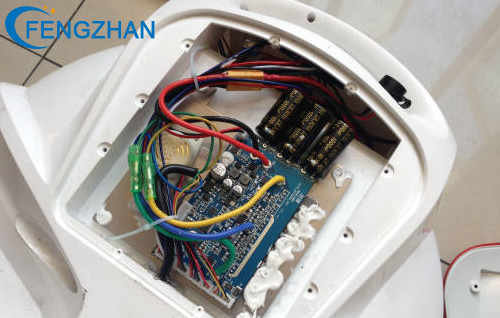

PCB board wire harness

Electrical boundary: used to determine the size of the circuit board, all components on the circuit board cannot exceed the boundary.
PCB board wiring harness application areas:
Computer and peripherals: motherboard, monitor, network card, memory card, IC, mouse, router, camera, U disk, fan motor, game console, game card board (gold finger board).

Mobile phone: mobile phone board, charger, electronic anti-theft lock, stereo, printer, copier, fax machine, telephone, scanner, monitoring system, video head, DV, camera, meter board.

Automotive products: car audio, air-conditioning switches, control systems, lamps, LED panels (liquid crystal displays, liquid crystal signs), sensors for various machines.

Bathroom equipment: motors, controllers, switches, and PCB boards for high-end industries: such as medical equipment, military equipment, aerospace equipment, etc.


Product:  PCB Board Cable Harness      Tin-coated Copper PCB Jumper Wire
